Mechanical Control Ultrasonic Cleaner Machine

Mechanical Control Ultrasonic Cleaner Machine

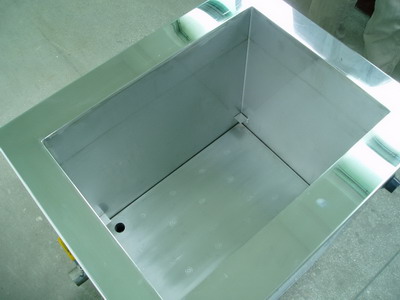

Mechanical Control Ultrasonic Cleaner Machine Material: imported SUS304δ2.0 mm stainless steel plate, the shock surface SUS316δ2.0 mm stainless steel plate,
Outer plate SUS304δ1.0 mm stainless steel plate.

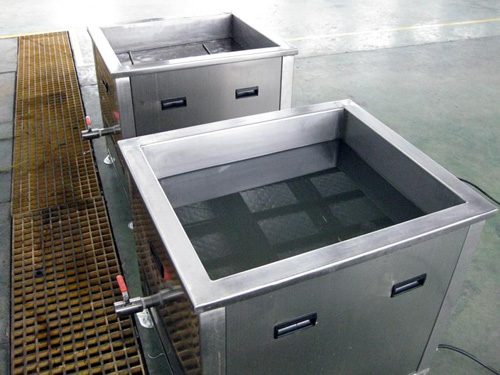

◆ Structure: the machine with the bottom of the mobile casters mounted 1 "drain valve at the bottom or side of the stick ultrasonic transducer device, the whole stainless steel structure.
Ultrasonic heating system: stainless steel heating plate heating, heating power 160W-7000W, mechanical automatic constant temperature control adjustable from 30 to 110 ℃.
◆ electrical systems: electrical components are imported high quality

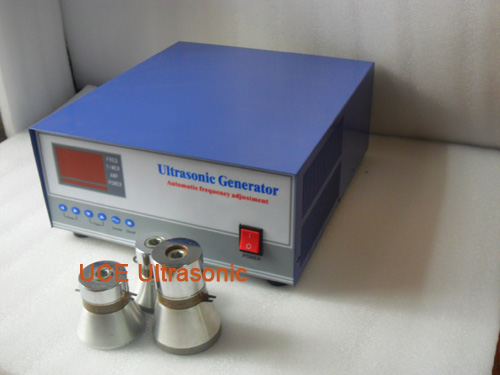

◆ ultrasonic generator: a microcomputer under the control of digital frequency synthesis, ultrasonic power is continuously adjustable (digital display)
With perfect protection functions: overheat, overcurrent protection, also has four timers, time control accurate to the second. Also
With Swept function.
◆ Power supply: ultrasonic 220V/50HZ, 110V/60HZ heating power 380V/50HZ
◆ Configuration: cylinder head, wash basket
◆ ultrasonic cleaning is the most efficient, the best kind, the reason for the ultrasonic cleaning can be achieved so the effect of production and life, you need to clean a lot of things, the type of cleaning
Mechanical Control Ultrasonic Cleaner Machine
And links such as: object removal of pollutants, and clear the small holes, a common hand-cleaning methods can not meet the requirements undoubtedly shaped object and the object shelter, even steam cleaning and high-

Pressure water jet cleaning can not meet the high demand on cleanliness, ultrasonic cleaning of objects but also to kill bacteria, dissolved organic pollutants, prevent excessive corrosion, ultrasonic cleaning is increasingly
Mechanical Control Ultrasonic Cleaner Machine
Widely used in all walks of life:
Machinery industry (1): anti-rust grease removal; cleaning of the measuring tools; mechanical parts degreasing rust; engine, carburetor and parts cleaning; filters, filter dredge cleaning.
(2) surface treatment industry: prior to plating, degreasing rust; ion cleaning before plating; phosphate treatment; clear coke; remove oxide; remove polishing paste; metal workpiece surface activation treatment.
(3) the instrumentation industry: assembly of precision parts of high cleanliness cleaning.
(4) the electronics industry: printed circuit boards in addition to the cleaning of rosin, weld spots; high-voltage contacts, and other machinery and electronics parts and so on.
(5) the medical profession: medical equipment, cleaning, disinfection, sterilization, experimental vessel cleaning and so on.
(6) The semiconductor industry: high cleanliness cleaning of semiconductor wafers.
(7) watch, decoration industry: Clear the sludge, dust, oxide, polishing ointment.
(8) chemical, biological industry: the experimental containers, cleaning, descaling.
(9) the optical industry: optics, degreasing, in addition to sweat, cleaning, and so on.
(10) The textile industry: cleaning of textile spindles, spinneret.
(11) Petroleum and Chemical Industry: Metal filter cleaning dredge, chemical containers, cleaning of the switch.
Mechanical Control Ultrasonic Cleaner Machine
Standard Mechanical Control Ultrasonic Cleaner Machine

Type Internal size
L*W*H (mm)
Outsize mm
L*W*H (mm)
Frequency (Khz) Power(W) Heating(W) Total power(W) voltage
UCE-1006ST 280×210×210 320×250×350 20,28,33,40,80,130 300 1000 1300 220V
UCE-1012ST 400×310×280 520×430×600 20,28,33,40,80,130 600 3000 3600 220V
UCE-1018ST 490×360×320 610×480×675 20,28,33,40,80,130 900 3000 3900 220V
UCE-1024ST 630×430×320 740×550×675 20,28,33,40,80,130 1200 4000 5200 220V
UCE-1030ST 630×530×320 750×650×675 20,28,33,40,80,130 1500 4000 5500 220V
UCE-1036ST 680×530×360 800×650×700 20,28,33,40,80,130 1800 5000 6800 220V
UCE-1040ST 680×570×400 830×710×735 20,28,33,40,80,130 2000 5000 7000 220V
UCE-1041ST 730×570×450 880×710×735 20,28,33,40,80,130 2400 6000 8400 220V
UCE-1042ST 790×670×510 940×765×785 20,28,33,40,80,130 3000 6000 9000 380V
UCE-1043ST 850×770×570 990×820×785 20,28,33,40,80,130 4000 7000 11000 380V
UCE-1044ST 910×820×620 1050×880×840 20,28,33,40,80,130 5000 7000 12000 380V
UCE-1045ST 960×870×680 1100×940×920 20,28,33,40,80,130 8000 8000 16000 380V
UCE-1046ST 1100×930×730 1160×1000×980 20,28,33,40,80,130 10000 8000 18000 380V
OEM Ultrasonic Cleaning Mchine(Size, Frequency,Power)-----UCE ultrasonic
