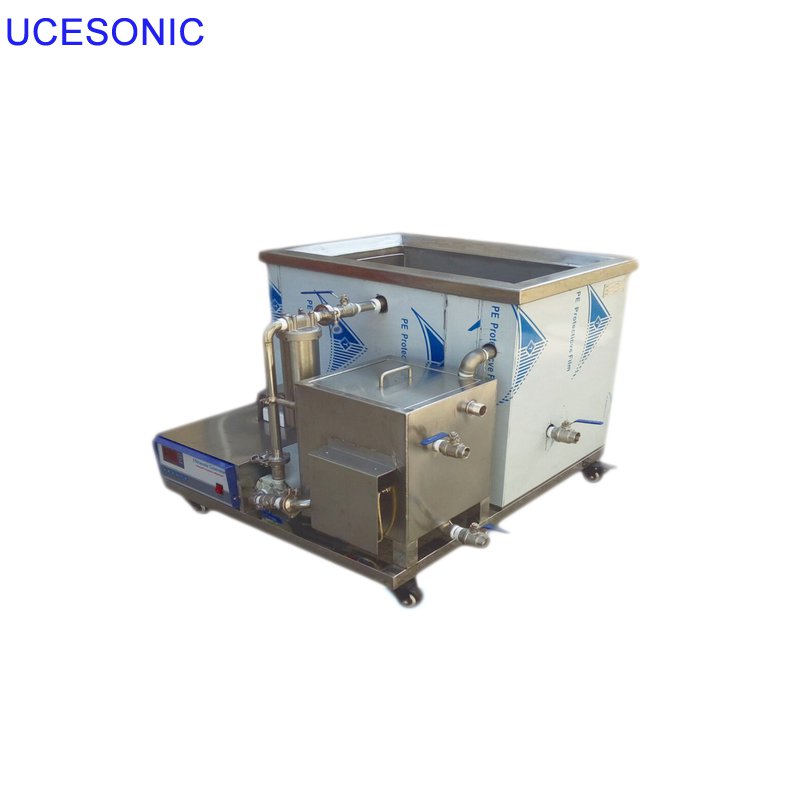

Filtering Circulation Digital Ultrasonic Washing Machine for Engine Parts

Ultrasonic circulation system:

The cleaning solution in the cleaning tank forms self circulation through water separator, circulating pump, filter, pipeline and ball valve, and filters impurities in the cleaning solution. The flow and head strength of the circulating pump ensure to remove the suspended dust in the cleaning solution.

The circulating pump is equipped with automatic / manual selection switch. Under automatic condition, the circulating pump is started at the beginning of cleaning and automatically closed after cleaning. The outlet of the circulating system is equipped with a pressure display gauge.

The cleaning tank is made of imported sus316,2 mm thick stainless steel plate, and the outer plate is made of sus304,1 mm thick stainless steel plate. The main electrical components and control parts of the equipment are high-quality imported parts.

The appearance of the equipment shall be beautiful, fine, convenient for repair and maintenance, convenient for emergency, and easy for cleaning tank.

Type	Internal size L*W*H (mm)	Outsize mm L*W*H (mm)	Frequency (Khz)	Power (W)	Heating (W)	Total power(W)	voltage
UCE-XHXJ-1006	280×210×210	320×250×350	20,28,33,40,80,130	300	100	400	220V
UCE-XHXJ-1012	400×310×280	520×430×600	20,28,33,40,80,130	600	500	1100	220V
UCE-XHXJ-1018	490×360×320	610×480×675	20,28,33,40,80,130	900	500	1400	220V
UCE-XHXJ-1024	630×430×320	740×550×675	20,28,33,40,80,130	1200	1000	2200	220V
UCE--XHXJ-1030	630×530×320	750×650×675	20,28,33,40,80,130	1500	100	2500	220V
UCE-XHXJ-1036	680×530×360	800×650×700	20,28,33,40,80,130	1800	1000	2800	220V
UCE-XHXJ-1040	680×570×400	830×710×735	20,28,33,40,80,130	2000	1000	3000	220V
UCE-XHXJ-1041	730×570×450	880×710×735	20,28,33,40,80,130	2400	2000	4400	220V
ARS-XHXJ-1042	790×670×510	940×765×785	20,28,33,40,80,130	3000	2000	5000	380V
ARS-XHXJ-1043	850×770×570	990×820×785	20,28,33,40,80,130	4000	2000	6000	380V
UCE-XHXJ-1044	910×820×620	1050×880×840	20,28,33,40,80,130	5000	3000	8000	380V
UCE-XHXJ-1045	960×870×680	1100×940×920	20,28,33,40,80,130	8000	4000	12000	380V
UCE-XHXJ-1046	1100×930×730	1160×1000×980	20,28,33,40,80,130	10000	5000	15000	380V
