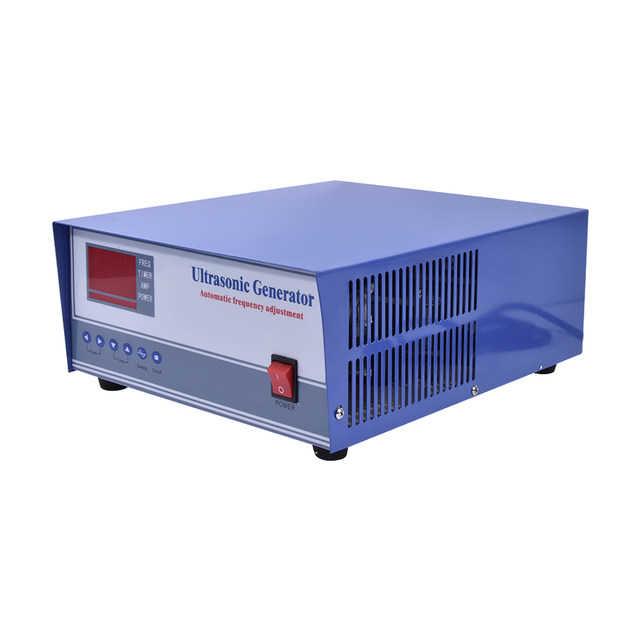

Single frequency ultrasonic generator 28khz/40khz

2018-09-27 12:04 admin
This kind of ultrasonic generator uses the current international leading other excitation oscillation circuit structure, compared with the traditional self-excitation oscillation circuit structure in the output power increase of more than 15%, can maximize the potential of transducer. The working voltage is AC220 + 10V. With overvoltage, over current, output short-circuit and other protective measures. The function of frequency fine adjustment and frequency automatic tracking can achieve the best effect under different working conditions. Drive the cleaning fluid to form a fine reflux, so that the work piece dirt in the ultrasonic peeling at the same time quickly away from the surface of the work piece, improve the cleaning efficiency. With the function of stepless power regulation, the output power can be adjusted continuously from 10% to 100% to meet the requirements of various cleaning objects.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
Single frequency ultrasonic generator 28khz/40khz

Single frequency ultrasonic generator 28khz/40khz
