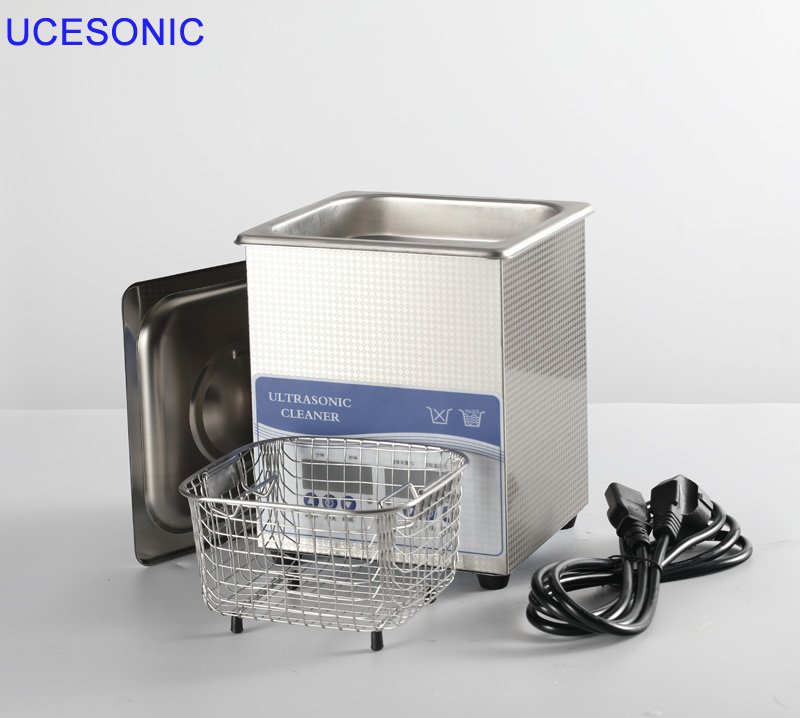

ultrasonic nozzle cleaning machine

Ultrasonic nozzle cleaner is a kind of high-frequency oscillation signal emitted by ultrasonic generator, which is converted into high-frequency mechanical oscillation by transducer and propagated to medium-cleaning solution. The ultrasonic wave radiates forward densely in the cleaning solution, making the liquid flow and producing tens of thousands of tiny bubbles. These bubbles are longitudinal ultrasonic In the process of bubble closure, known as cavitation, a transient high pressure of more than 1,000 barometric pressures can be formed. Continuous high pressure is like a series of small "explosions" that constantly impact the surface of the object, causing the surface of the object and the gap in it. Dirt quickly peeled off. So as to achieve the overall cleaning effect of objects. Mainly used in the production and maintenance of electronic and electrical parts, medical instruments, automobiles, motorcycles, locomotives, aircraft parts, metal stamping parts, oil pump nozzles, compressor parts and chemical fiber industry spinneret and filter core cleaning.

Model	Tank Size	Unit Size	Volume	Power	Ultrasonic Frequency	Heating Power	Timer	Heating
	L x W x H(mm)	L x W x H(mm)	(L)	(W)	(KHz)	(W)	(MIN)	(℃)
UCE103H	150x140x65	190x170x185	1.3	50	40	100	1-99	0-80
UCE002H	150x140x100	190x170x220	2	50		100	1-99	0-80
UCE003H	240x140x100	270x170x240	3	100		100	1-99	0-80
UCE006H	300x155x150	330x180x310	6	150		300	1-99	0-80
UCE010H	300x240x150	330x270x310	9	200		300	1-99	0-80
UCE013H	355x325x150	360x330x310	13	300		400	1-99	0-80
UCE020H	530x325x150	550x330x310	20	400		500	1-99	0-80
UCE027H	530x325x200	550x330x360	27	500		500	1-99	0-80
