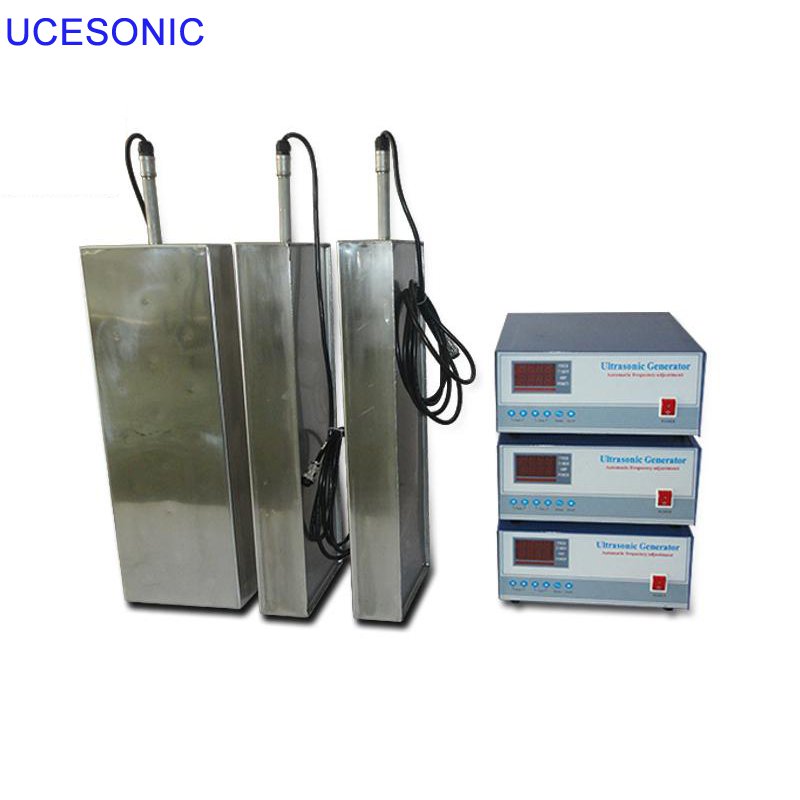

Underwater Submersible Ultrasonic Transducers 2000W/3000W
Seismic plate is divided into: input type ultrasonic plate, flange type plate and removable ultrasonic plate. The split structure is adopted, and the high frequency wire with socket is used between the shock plate and the
ultrasonic generator, which is convenient to use and maintain.
1. The detachable ultrasonic vibration plate is characterized by being able to open and inspect the inner vibrator at any time, most of which are bolted connections, and will not be deformed by welding, thus durable; convenient maintenance, simple installation, suitable for installation and use on large automatic optical cleaner, manual mobile phone glass
ultrasonic cleaner and other equipment; flexible installation and layout. The ultrasonic radiation surface can be arranged on the bottom, side or top of the cleaning tank as required.
2. The shock plate is made of stainless steel with alkali and acid resistance, and the surface of the shock plate is plated with hard chromium. Ultrasound transducer adopts high-quality and high-performance products with high efficiency of electro-acoustic conversion.
3. The split structure is adopted, and the high frequency wire with socket is used between the shock plate and the ultrasonic generator, which is convenient to use and maintain.
4. The installation arrangement is flexible. The ultrasonic radiation surface can be arranged on the bottom, side or top of the cleaning tank according to the need.
5. Ultrasound shock plate can be customized according to customer requirements for cleaning electroplated parts, clocks and watches, hardware and machinery parts, polyester filter core, semiconductor silicon, tools, lenses, spectacle frames, jewelry, jewelry, glass, utensils and other industries, widely used.
Type |
Diamention(mm) |
Frequency (Khz) |
Power(W) |
Ultrasonic Transducer |
UCE-UITP300W |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
UCE-UITP600W |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
UCE-UITP1000W |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
UCE-UITP1200W |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
UCE-UITP1500W |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
UCE-UITP1800W |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
UCE-UITP2000W |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
UCE-UITP2400W |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
UCE-UITP3000W |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
UCE-UITP5000W |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |
OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
