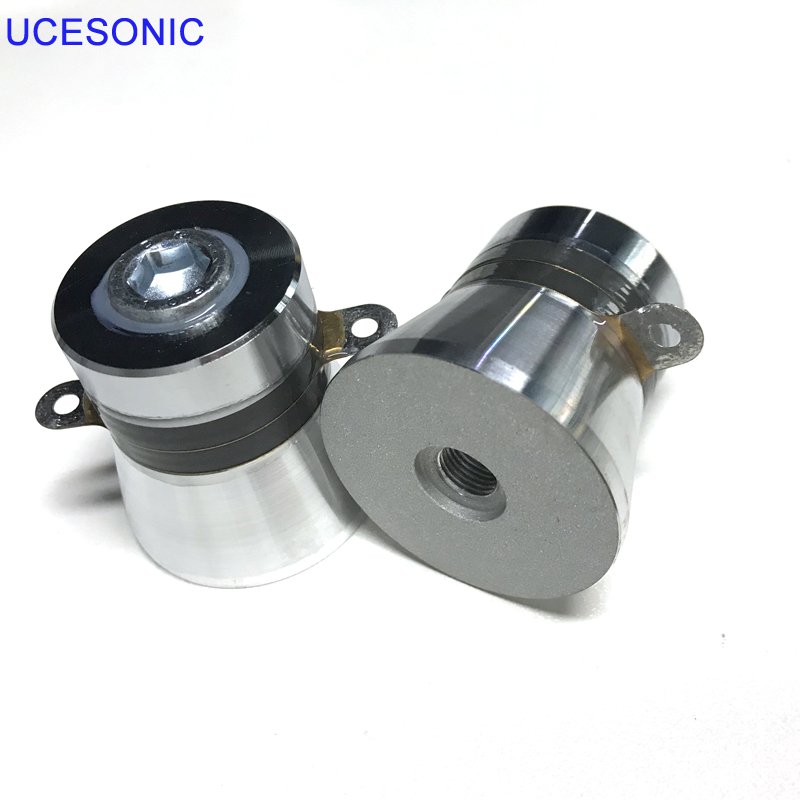

Types of Ultrasonic Transducers for Cleaning tank

The company's ultrasonic transducer has low calorific value, good thermal stability, low resonant impedance, good consistency between frequency and static capacitance, complete and smooth waveform of frequency and impedance.



The working principle of broadband ultrasonic transducer:

Ultrasound is composed of a series of dense longitudinal waves, which are propagated around by liquid medium. When the acoustic energy is high enough, the attraction between liquid molecules is broken in the loose half-cycle to form a cavitating nucleus. The lifetime of the nucleus is about 0.1 ugs. It can produce a local high temperature and pressure environment of about 4000K and 100MPa at the moment of explosion, and produce a micro-jet with strong impact force at a velocity of about 110m/s. This phenomenon is called ultrasonic cavitation. Ultrasound enhancement of chemical reaction and transport process is mainly caused by chemical and mechanical effects of ultrasonic cavitation.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
