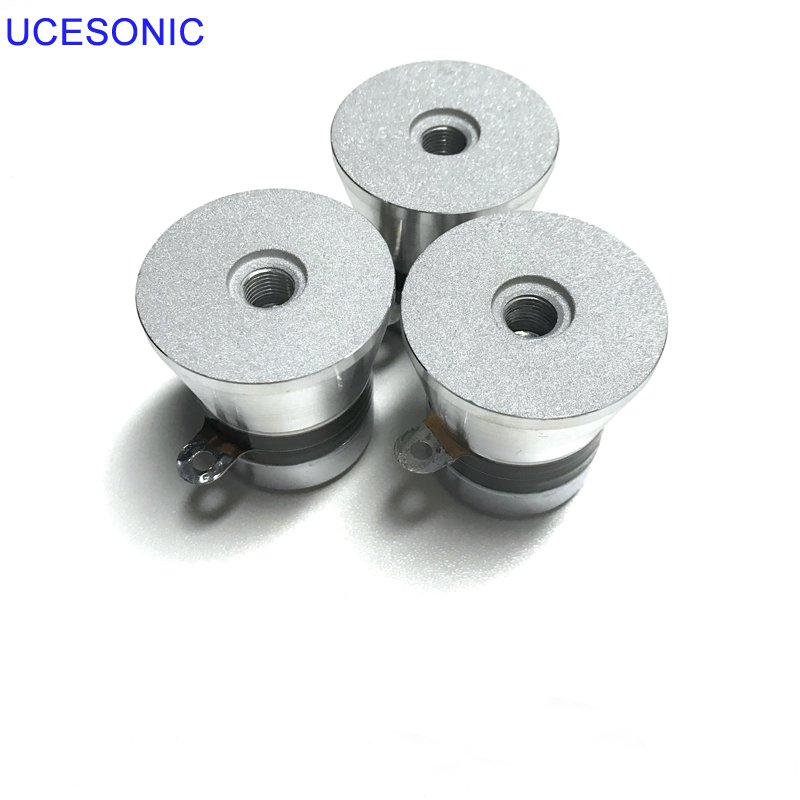

different types of ultrasound transducers 28khz/40khz

Application of ultrasonic transducer:

1. Among all cleaning methods, ultrasonic cleaning is the most efficient and effective one. The reason why ultrasonic cleaning can achieve such effect is closely related to its unique working principle and cleaning method.

2. We know that in production and life, there are many things to be cleaned, and there are many kinds and links to be cleaned, such as: cleaning pollutants, dredging small holes, common manual cleaning methods can not meet the requirements of special objects and hidden places of objects, even steam cleaning and high-pressure water jet cleaning can not meet the needs of higher cleanliness. Ultrasound cleaning can also kill bacteria, dissolve organic pollutants, prevent over-corrosion and so on. Therefore, ultrasonic cleaning is increasingly widely used in all walks of life:

(1) Machinery industry: removal of rust-proof grease; cleaning of measuring tools; oil and rust removal of mechanical parts; cleaning of engines, carburetors and automotive parts; dredging and cleaning of filters and filters, etc.

(2) Surface treatment industry: degreasing and rust removal before electroplating; cleaning before ion plating; phosphating treatment; removal of coke deposits; removal of oxide scales; removal of polishing paste; surface activation treatment of metal workpieces, etc.

(3) Instrument and instrumentation industry: high cleanliness pre-assembly cleaning of precision parts, etc.

(4) Electronics industry: Printed circuit boards except rosin, weld spots; high-voltage contacts and other mechanical and electronic parts cleaning.

(5) Medical industry: cleaning, disinfection, sterilization of medical instruments, cleaning of experimental utensils, etc.

(6) Semiconductor industry: high cleanliness cleaning of semiconductor wafers.

(7) Watch head and jewelry industry: removing sludge, dust, oxide layer, polishing paste, etc.

(8) Chemical and biological industries: cleaning and descaling of experimental vessels.

(9) Optical industry: oil removal, sweat removal and ash removal of optical devices.

(10) Textile printing and dyeing industry: cleaning textile spindles, spinnerets, etc.

(11) Petrochemical industry: cleaning and dredging of metal filters, cleaning of chemical containers and exchangers, etc.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
