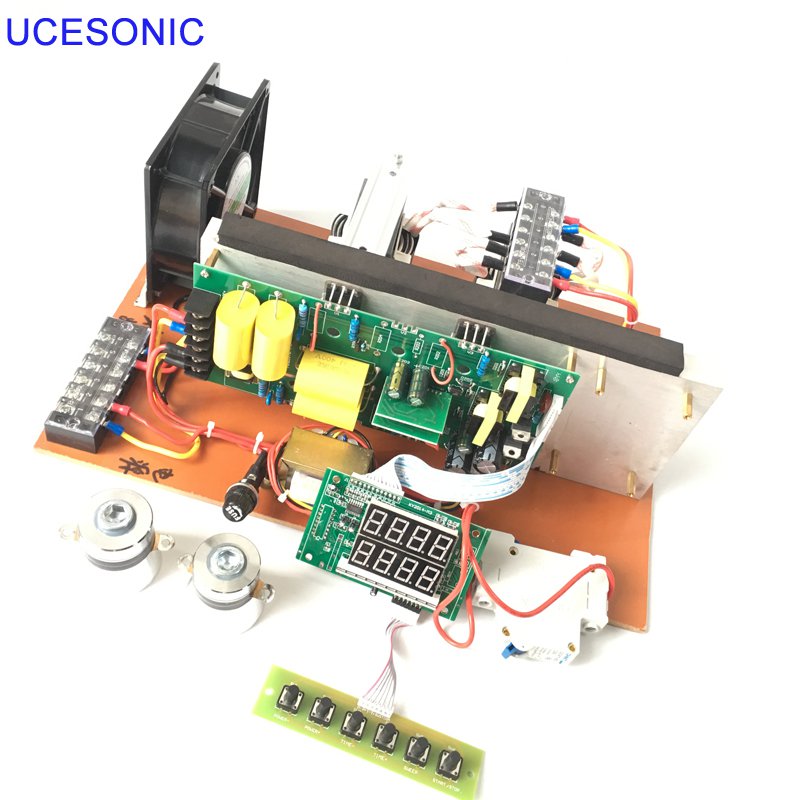

ultrasonic sound circuit for ultrasonic generator 28khz/40khz

ultrasonic PCB generator is safe to use. It has the functions of over-current, over-voltage and over-heat protection. For example, if the voltage exceeds 10% of 220V soil, the ultrasound will be suspended, waiting to return to normal and can be ultrasound. Soochow Nabo Science and Technology has a brilliant reputation. We have spent ten years exploring from the perfection of procedures, horn adjusting technology and the choice of circuit boards. The seventh generation of ultrasonic generators will meet with you again.



1. Ultrasound circuit boards adopt advanced technologies such as micro-computer controlled excitation circuit, frequency automatic tracking and sweeping mode. Compared with the traditional control box, it has stable and reliable operation, continuous adjustable ultrasonic power, and can maximize the potential of the transducer.



2. The automatic tracking of the working frequency of the ultrasonic circuit board makes the output matching better, the power stronger and the efficiency higher.



3. The unique sweeping mode of the ultrasonic circuit board makes the cleaning liquid form a fine reflux under the sweeping effect. The dirt stripped from the ultrasonic circuit board is taken off the surface of the workpiece in time, so as to achieve a faster and more thorough cleaning effect, and the ultrasonic cleaning efficiency is higher.

Type	Power（W）	Frequency (KHz)
UCE-HPPCB300W	300	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB600W	600	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB900W	900	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB1000W	1000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB1200W	1200	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB1500W	1500	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB1800W	1800	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB2000W	2000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB2400W	2400	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB3000W	3000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
