ultrasonic transducer oscillator circuit 40khz/28khz

2019-05-30 10:36 admin
ultrasonic transducer oscillator circuit 40khz/28khz
Miniature ultrasonic generator is safe to use. It has the functions of over-current, over-voltage and over-heat protection. For example, if the voltage exceeds 10% of 220V soil, the ultrasound will be suspended, waiting to return to normal and can be ultrasound. Soochow Nabo Science and Technology has a brilliant reputation. We have spent ten years exploring from the perfection of procedures, horn adjusting technology and the choice of circuit boards. The seventh generation of ultrasonic generators will meet with you again.

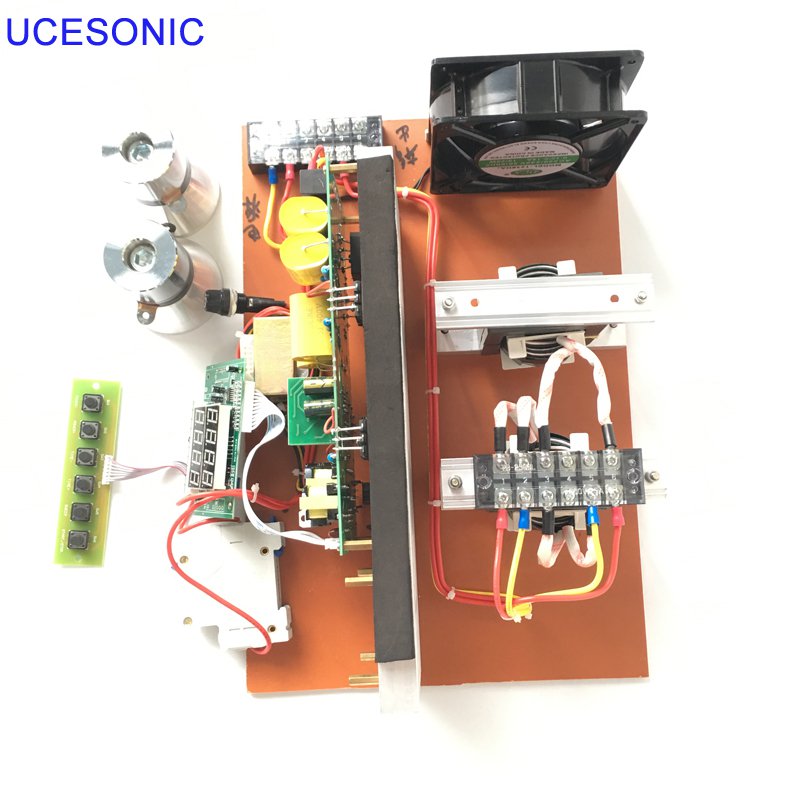

Ultrasound circuit boards adopt advanced technology such as micro-computer controlled excitation circuit, frequency automatic tracking and sweeping mode. Compared with the traditional control box, it has stable and reliable operation, continuous adjustable ultrasonic power, and can maximize the potential of the transducer.

Superiorities of ultrasonic PCB generator products:
1. Small size, easy to handle and store;
2. The operation is simple and easy to understand, and the debugging is simple.
3. Supersonic wave has strong penetration and cleanliness.
Type Power(W) Frequency (KHz)
UCE-HPPCB300W 300 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
UCE-HPPCB600W 600 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
UCE-HPPCB900W 900 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
UCE-HPPCB1000W 1000 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
UCE-HPPCB1200W 1200 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
UCE-HPPCB1500W 1500 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
UCE-HPPCB1800W 1800 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
UCE-HPPCB2000W 2000 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
UCE-HPPCB2400W 2400 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
UCE-HPPCB3000W 3000 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
ultrasonic transducer oscillator circuit 40khz/28khz

ultrasonic transducer oscillator circuit 40khz/28khz
