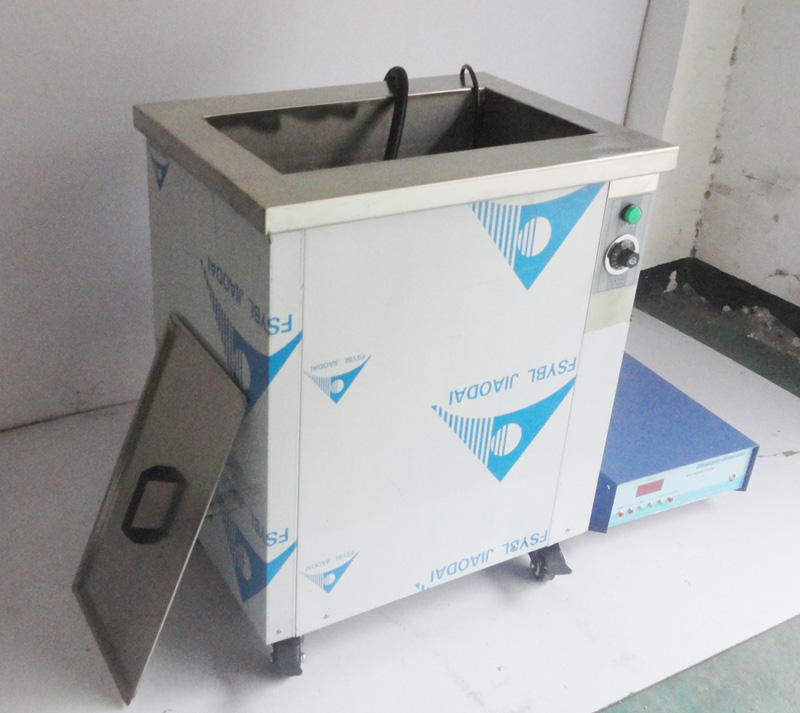

industrial ultrasonic cleaning system 28khz/40khz/80khz

Ultrasonic cleaning machine is a kind of equipment which uses the cavitation effect of ultrasonic wave in liquid to clean the surface of object. Combined with the cleaning effect of cleaning agent, it is widely used in metal degreasing, dewaxing, automobile parts cleaning.

The ultrasonic cleaning machine makes use of the cavitation effect produced by the ultrasonic wave in the cleaning fluid to make the dirt and the workpiece detached, and speeds up the chemical reaction between the cleaning fluid and the dirt, enlarges the contact area between the cleaning fluid and the workpiece, so as to make the cleaning more complete, especially for the deep hole and blind hole. Ultrasonic cleaning for workpiece cleaning rate up to 98%, is currently internationally recognized the best way of cleaning.

1, ultrasonic vibration head, using 3 surface vibration, equipped with 144 ultrasonic vibration head, 25KHZ, 60W

2. The whole machine is made of stainless steel and SUS304#2.5mm stainless steel plate.

3, according to the actual needs of customers, we can configure the circulation filtering system, save the cost and increase efficiency.

4, configure digital display temperature control, temperature control range is 0-100 degrees Celsius.

5. Adopt professional vibrator bonding technology.

6. Choose a complete set of cleaning agent, you can use the piston, engine oil, carbon cleaning time is controlled in 10-20 minutes.

Type	Internal size L*W*H (mm)	Frequency (Khz)	Power(W)	Heating(W)
UCE-1006ST	280×210×210	20,28,33,40,80,130	300	1000
UCE-1012ST	400×310×280	20,28,33,40,80,130	600	3000
UCE-1018ST	490×360×320	20,28,33,40,80,130	900	3000
UCE-1024ST	630×430×320	20,28,33,40,80,130	1200	4000
UCE-1030ST	630×530×320	20,28,33,40,80,130	1500	4000
UCE-1036ST	680×530×360	20,28,33,40,80,130	1800	5000
UCE-1040ST	680×570×400	20,28,33,40,80,130	2000	5000
UCE-1041ST	730×570×450	20,28,33,40,80,130	2400	6000
UCE-1042ST	790×670×510	20,28,33,40,80,130	3000	6000
UCE-1043ST	850×770×570	20,28,33,40,80,130	4000	7000
UCE-1044ST	910×820×620	20,28,33,40,80,130	5000	7000
UCE-1045ST	960×870×680	20,28,33,40,80,130	8000	8000
UCE-1046ST	1100×930×730	20,28,33,40,80,130	10000	8000
