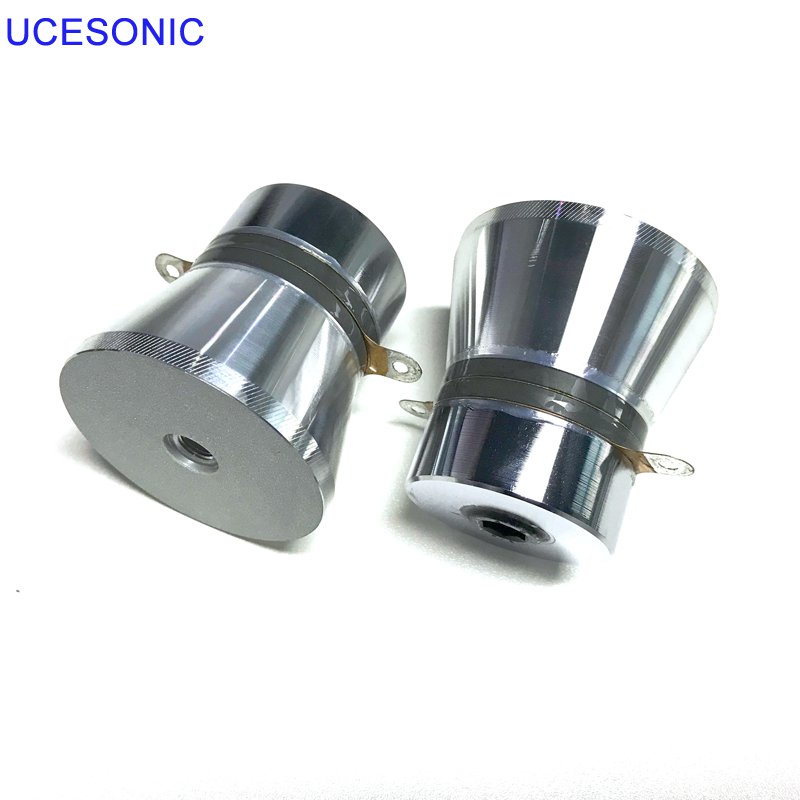

40khz high power ultrasonic transducer for cleaning

Acoustic wave transducer has a sharp directivity, which is conducive to concentrating the emission energy, obtaining a higher signal-to-noise ratio when receiving, and also conducive to positioning and evaluation of the detection target. The manufacturer of ultrasonic welding machine shows that the ultrasonic transducer is related to its radiation surface size, structure, working frequency and characteristics of acoustic medium. Most of them can use directional factors to reflect the directivity of the ultrasonic transducer.



The so-called directional factor of ultrasonic transducer refers to the ratio of the mean square pressure of a frequency at a certain point far away from the main axis of the transmitting beam to the mean square pressure of a frequency on a sphere concentric with the transducer. For receiving ultrasonic transducers, the horn manufacturer indicates the ratio of the square value of EMF generated by a frequency acoustic wave passing along the main axis of the transducer to the square value of EMF generated by a diffusion acoustic field with the same frequency and root-mean-square pressure.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
