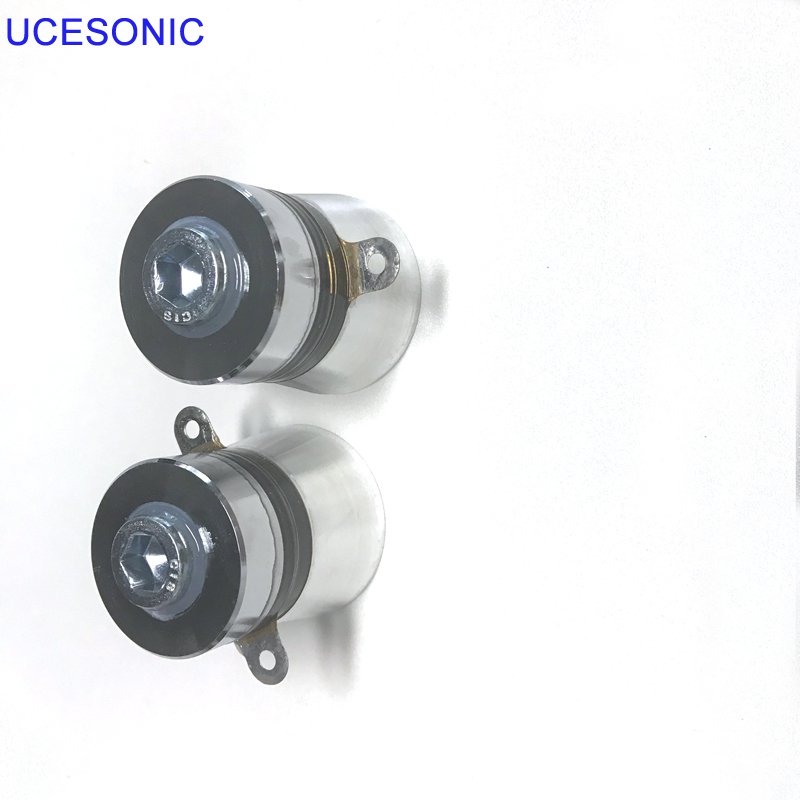

dual frequency ultrasonic transducer for cleaning tank

dual frequency ultrasonic transducer for cleaning tank
In the case of low frequency, the time interval between compression and sparsity of liquid is longer. The bubble can grow to a larger size, enhance the cavitation strength, and is conducive to cleaning. Therefore, low-frequency ultrasonic cleaning is generally used in the case of large parts or high adhesion between dirt and workpiece surface. But it is easy to damage and corrode the workpiece surface. Therefore, parts with higher surface requirements are not suitable for selecting lower frequencies. Moreover, the frequency is low and the noise is relatively high. High frequency ultrasonic penetration force is strong, it is appropriate to clean parts with high surface finish requirement or complex surface and more blind holes.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
