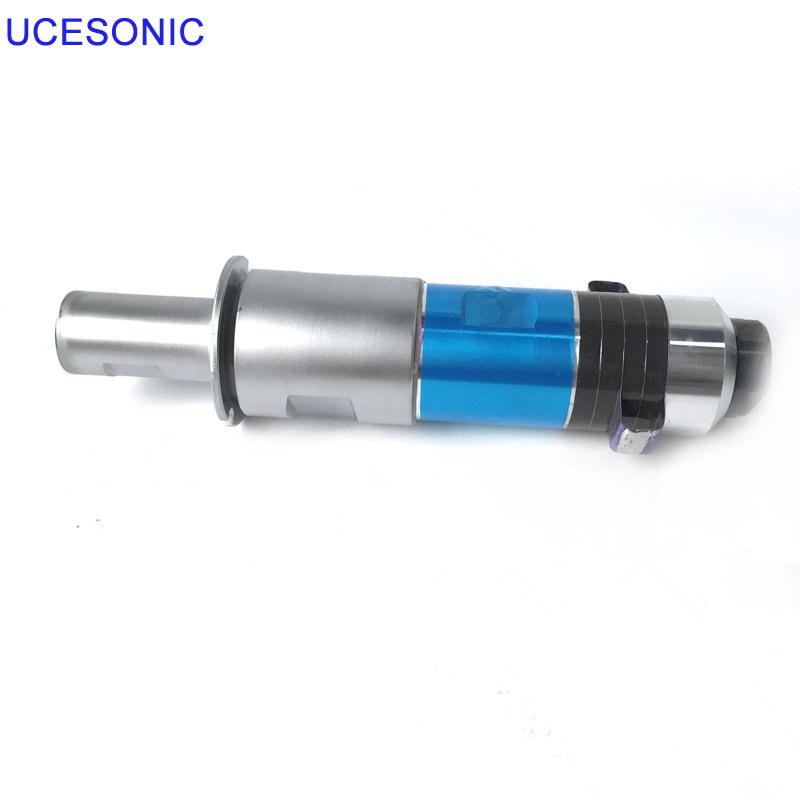

When the ultrasonic wave produced by the ultrasonic welding transducer acts on the plastic contact surface which needs to be welded, it will produce tens of thousands of high frequency vibration per second. The ultrasonic energy is transmitted to the welding area by the upper welding parts of the ultrasonic plastic welding equipment. Because the acoustic resistance of the welding area, that is, the interface between the two welding parts, is high, local high temperature will be generated. At the same time, the thermal conductivity of plastics is poor and heat dissipation gathers in the welding area, which causes the contact surface of two plastics to melt rapidly, and after adding a certain pressure, the two plastics can be merged into one. When the ultrasound stops working, let the pressure continue for a few seconds to solidify and form a solid molecular chain, so as to achieve the purpose of welding, the welding strength can be close to the strength of raw materials. Welding quality of ultrasonic plastic welding machine depends on the amplitude of transducer welding joint, the pressure and welding time. Welding time and welding pressure can be adjusted, and the amplitude is determined by transducer and horn. There is a suitable value for the interaction of these three quantities. When the energy exceeds the optimum value, the melting quantity of plastics will be large and the welding material will be easily deformed. If the energy is small, it will not be easy to solder firmly and the pressure imposed can not be too large. This optimum pressure is the product of the edge length of the welded part and the optimum pressure per mm of the edge.

Type	Full-length（mm）	Joint Bolt（mm）	Frequency（KHz）	Resonance Impedance（Ω）	Capacity（pF）	Input Power （W）
UCE-UWT152500 P8	153	M20×1.5	15	15	13000	2500
UCE-UWT152000 P8	167	M20×1.5	15	10	9500	2000
UCE-UWT151500 P4	171	M18×1.5	15	12	12500	1500
UCE-UWT151800 P4	118	M20×1.5	20	15	15000	1800
UCE-UWT202000 P8	128	M18×1	20	10	11000	2000
UCE-UWT202000 P8	124	M18×1.5	20	12	10000	1500
UCE-UWT20700 P8	112	1/2-20 UNF	20	15	9000	700
UCE-UWT20900 P8	133	1/2-20 UNF	20	15	10000	900
UCE-UWT20600 P8	121	M18×1.5	20	15	6000	600
UCE-UWT30500 P8	77	M10×1.5	30	5	5500	500
UCE-UWT28200 P4	92.1	M10×1	28	20	3000	200
UCE-UWT28100 P8	91	M8×1	28	25	2200	100
UCE-UWT28250 P8	94	1/2-20 UNF	28	20	4000	250
UCE-UWT202000 P8	128	1/2-20 UNF	20	10	20000	2000
UCE-UWT201500 P8	124	1/2-20 UNF	20	10	16000	1500
UCE-UWT201300 P8	128	1/2-20 UNF	20	10	12500	1300
UCE-UWT201500 P8	132	1/2-20 UNF	20	10	11000	1500
UCE-UWT20900 P8	123	1/2-20 UNF	20	10	9500	900
UCE-UWT152000 P4	171	M18×1.5	15	12	10000	2000
UCE-UWT35100 P8	71	M8×1	35	25	2200	100
UCE-UWT38100 P8	66	M8×1.25	38	40	1200	100
UCE-UWT38200 P4	65	M8×1	38	14	3300	200
