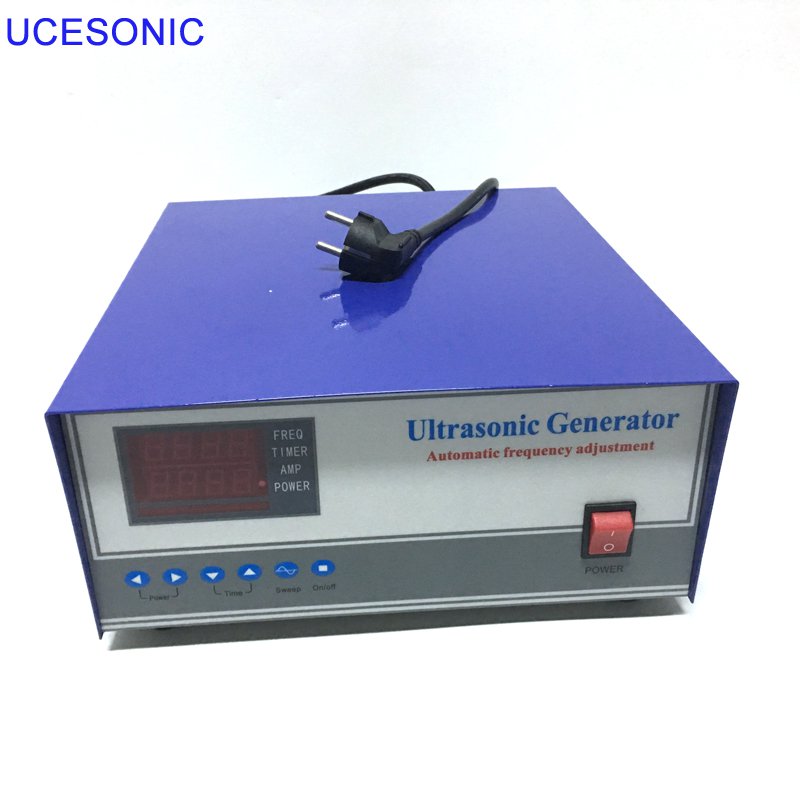

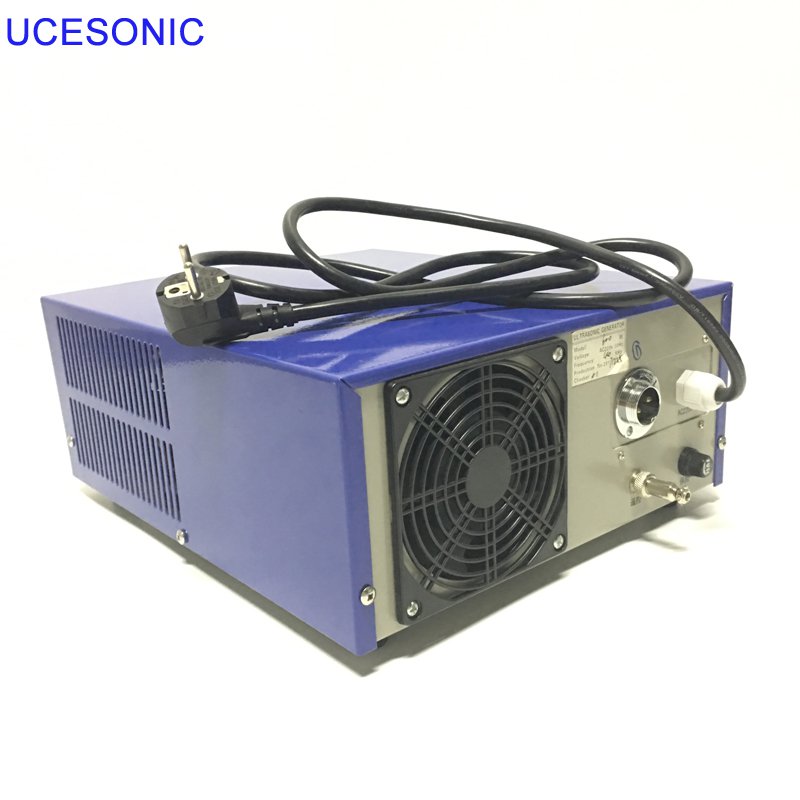

Digital Ultrasonic Generator box for cleaning

2019-05-23 12:51 admin
Digital Ultrasonic Generator box for cleaning
Frequency range of ultrasonic generator:
Frequency of 20 khz/28 khz/40 khz, i.e. in the range of 20 kHz-45 khz, can be adjusted on a single computer. High frequency machines such as 68khz-80khz-120khz generally need separate generators to realize. Please consult our company specifically.
Large power range:
300W-3000W, a single ultrasonic generator with high power 3000W, can bring 50 60 W vibration heads.
In addition to the ultrasonic generator, the company also provides ultrasonic vibration head, ultrasonic head glue, ultrasonic vibration plate and other ultrasonic accessories, and the production of ultrasonic cleaning machine, ultrasonic vibration plate, small ultrasonic cleaning machine, ultrasonic maintenance.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
