Reliable Digital Driving Ultrasonic generator

2019-05-22 14:45 admin

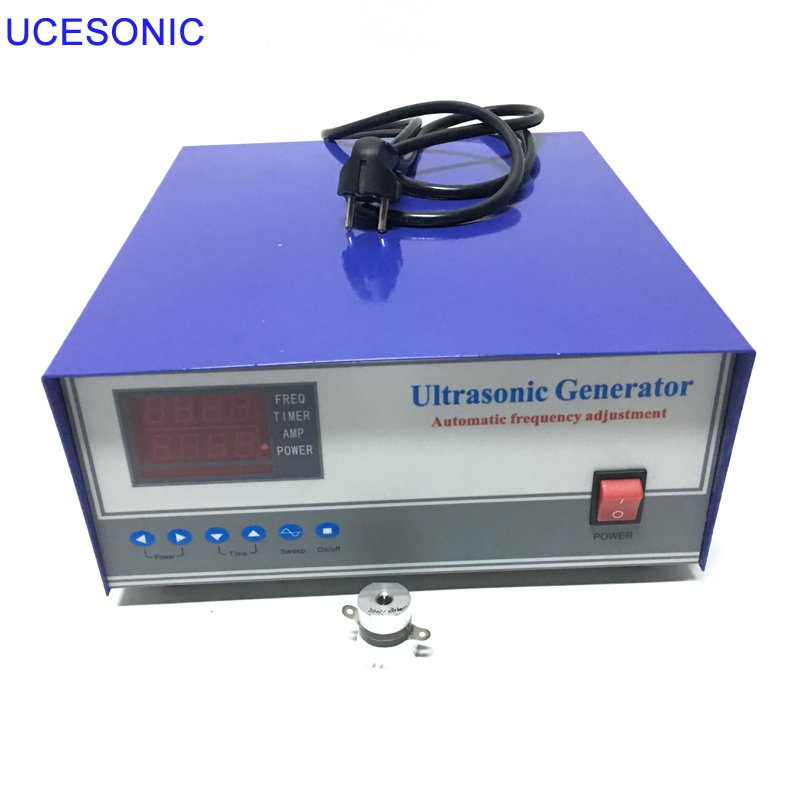

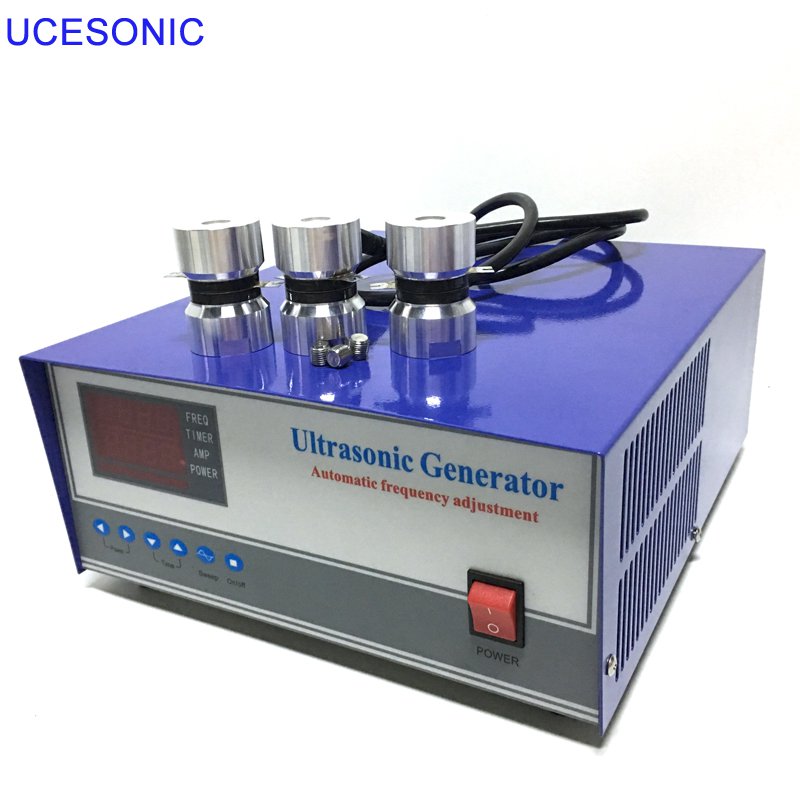

Reliable Digital Driving Ultrasonic generator
The ultrasonic generator produced by our company is replaced free of charge within three months of the problem, guaranteed for one year, and provides technical support service. It has high price, high quality, many years of production experience, mature technology and considerate maintenance service in the later period. Ultrasound generator frequency range: 20 khz-28 khz-40 khz-68 khz-80 khz-120 khz, power section 50w-3000w, welcome to buy.

The ultrasonic generator can monitor the working frequency and power of the high-power ultrasonic system.
(1) It can adjust various parameters in real time according to different requirements of users, such as power, amplitude, running time, etc.
(2) Frequency fine-tuning: adjust the frequency so that the ultrasonic transducer always works in the best state, the maximum efficiency, the adjustment range of 2%.
(3) Automatic frequency tracking: Once the device has completed the initial setup, it can work continuously without adjusting the generator.
(4) Amplitude control: When the load of the transducer changes during the working process, it can automatically adjust the driving characteristics to ensure the stable amplitude of the tool head.
(5) System protection: When the system works in an unsuitable operating environment, the generator will stop working and alarm and display to protect the equipment from damage.
(6) Amplitude adjustment: Amplitude can be increased or decreased instantaneously in the working process, and the range of setting amplitude is 0%~100%.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
