sweep mode ultrasonic generator for cleaning machine

2019-05-23 13:50 admin

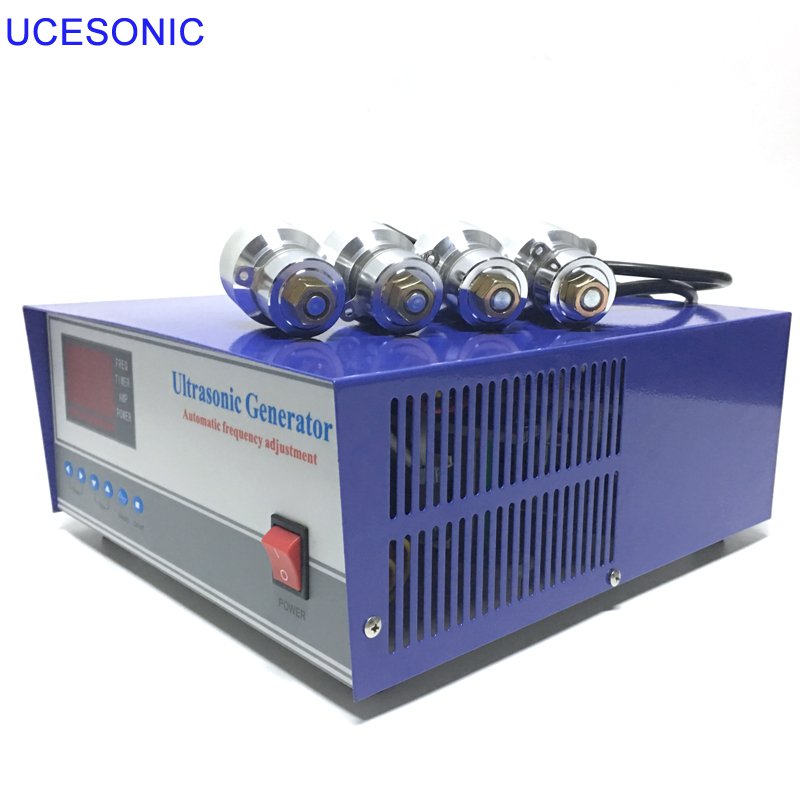

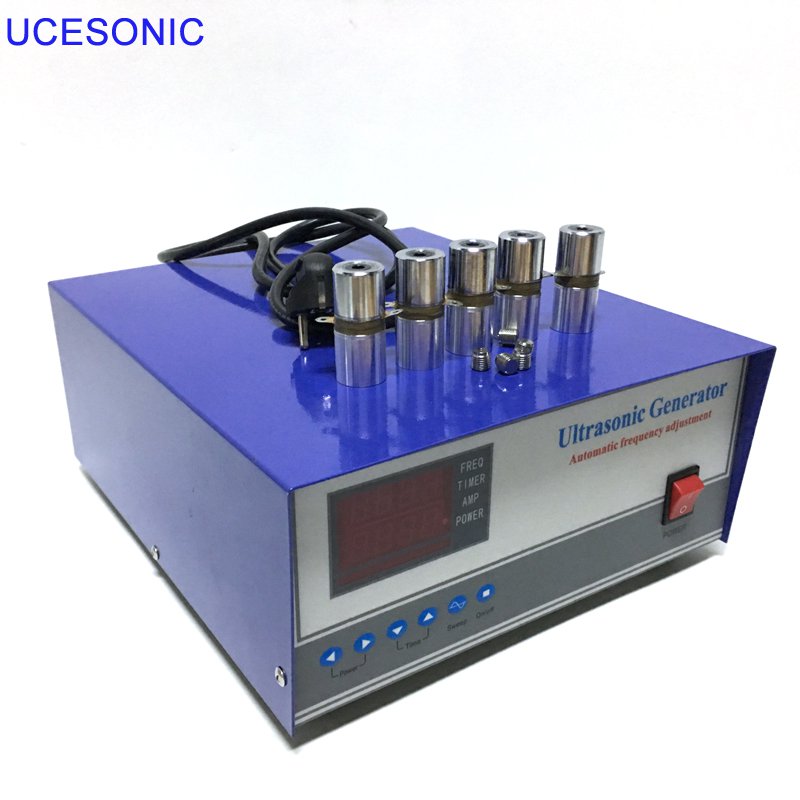

sweep mode ultrasonic generator for cleaning machine
The circuit of the control box of the ultrasonic generator adopts advanced technology such as the excitation circuit controlled by a microcomputer, the automatic frequency tracking and the sweeping mode. Compared with the traditional control box, it has stable and reliable operation, continuous adjustable ultrasonic power, and can maximize the potential of the transducer. Automatic frequency tracking makes output matching better, power stronger and efficiency higher. The unique sweeping mode makes the cleaning liquid form a fine reflux under the sweeping effect. The dirt stripped from the surface of the workpiece can be taken away in time to achieve a faster and more thorough cleaning effect, and the efficiency of ultrasonic cleaning is higher. At the same time, it has perfect protection function: overheat protection and overcurrent protection, which makes the work more reliable. A four-bit timer is also provided to make the time control accurate to seconds. With digital power adjustment, it can meet various cleaning requirements. Turn-on working state is changed at will, and it is more free to use. The whole machine adopts modular design, with the computer fault location and display system, making its use and maintenance more convenient. Structurally, anti-corrosion control panel and electrical insulation protection mode are adopted to enable it to work in harsh environment.

Characteristic:
(1) SCM control, IGBT mode of operation, ultrasonic output power than the old circuit increased by more than 15%, and continuous stepless adjustable, liquid crystal display.
(2) The working voltage of the ultrasonic generator device is 220 V AC (+10%). The ultrasonic generator has protective measures such as over-voltage, over-current and short-circuit output.
(3) The ultrasonic generator has the function of stepless power regulation. The output power can be adjusted continuously from 0% to 100% to meet the requirements of various cleaning objects.
(4) The ultrasonic generator is equipped with a digital ultrasonic working time of 0-999 minutes, accurate to seconds, to achieve unattended automatic duty.

Type

Power(W)

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
