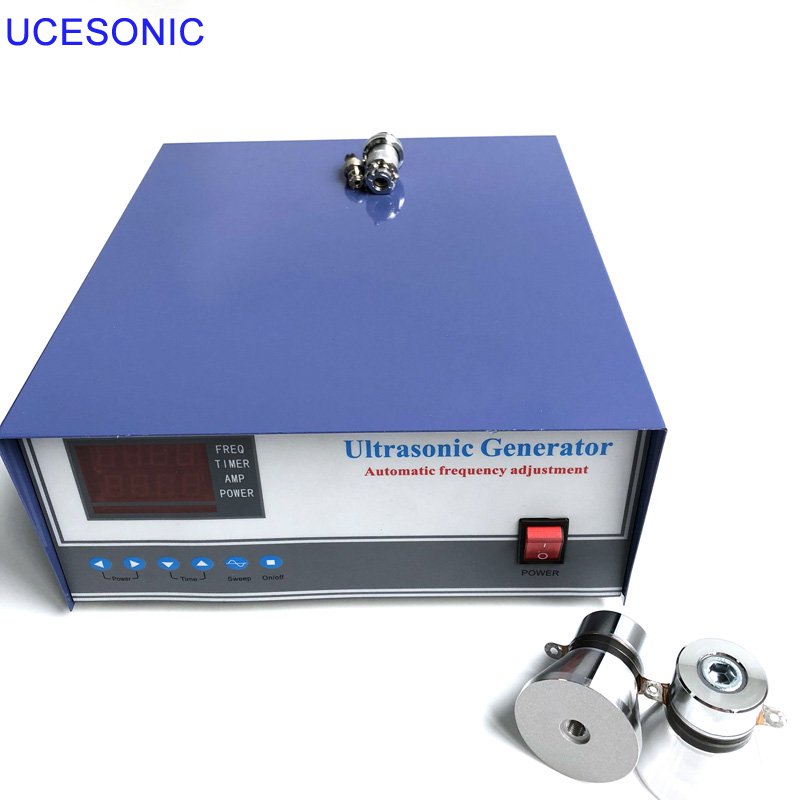

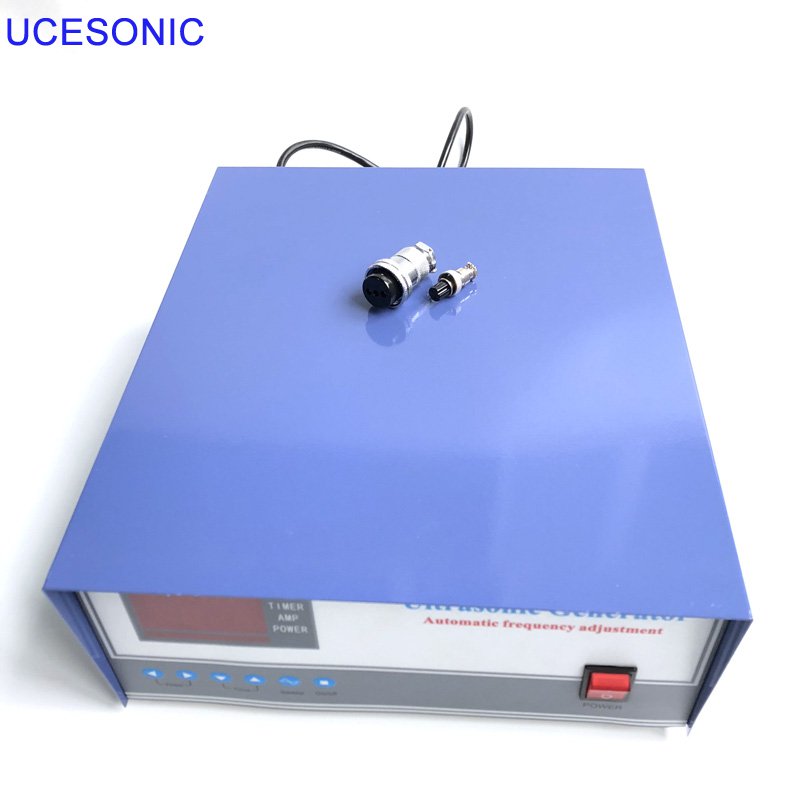

ultrasonic dishwasher cleaning generator 25khz/28khz

2019-05-26 11:45 admin
ultrasonic dishwasher cleaning generator 25khz/28khz
Ultrasound dishwasher is based on the principle of ultrasonic cleaning: when the ultrasonic wave passes through the liquid medium, it will press the liquid medium to vibrate at a very high frequency, and make the liquid molecules produce positive and negative alternating shock waves. When the sound intensity reaches a certain value, micro-cavitation bubbles grow rapidly in the liquid and close strongly instantaneously, resulting in strong micro-explosion and shock wave, which destroys the dirt on the surface of the cleaned object and falls off from the cleaned surface. Although the effect of each cavitation bubble is not great, there are hundreds of millions of cavitation bubbles in action every second, which has a good cleaning effect. Because ultrasonic wave can penetrate solid material and make the whole liquid medium vibrate and produce cavitation bubbles, there is no dead angle that can not be cleaned, and the industry has proved that the cleanliness of ultrasonic cleaning is high.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
