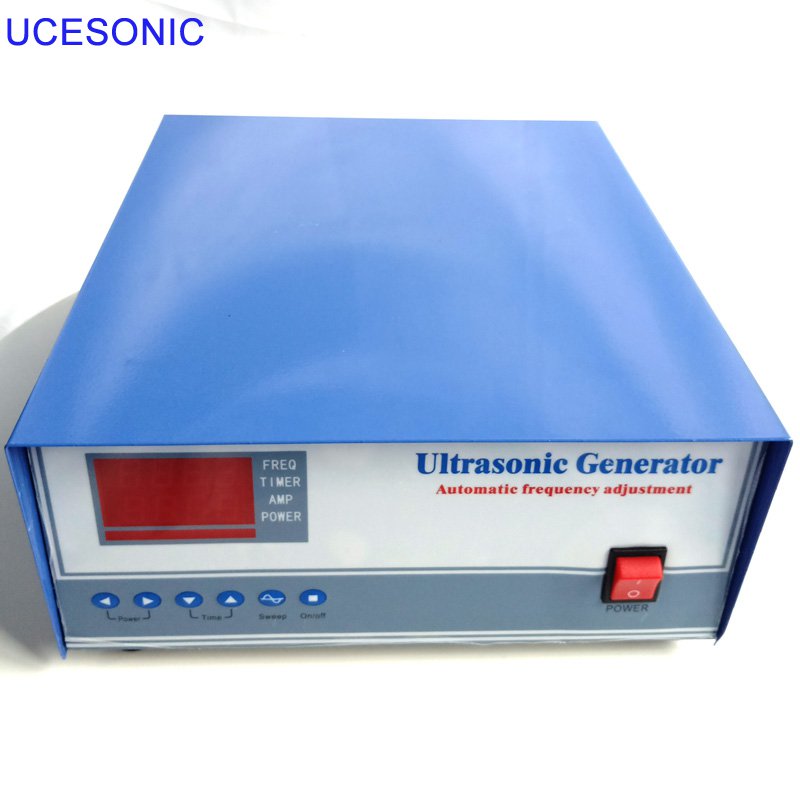

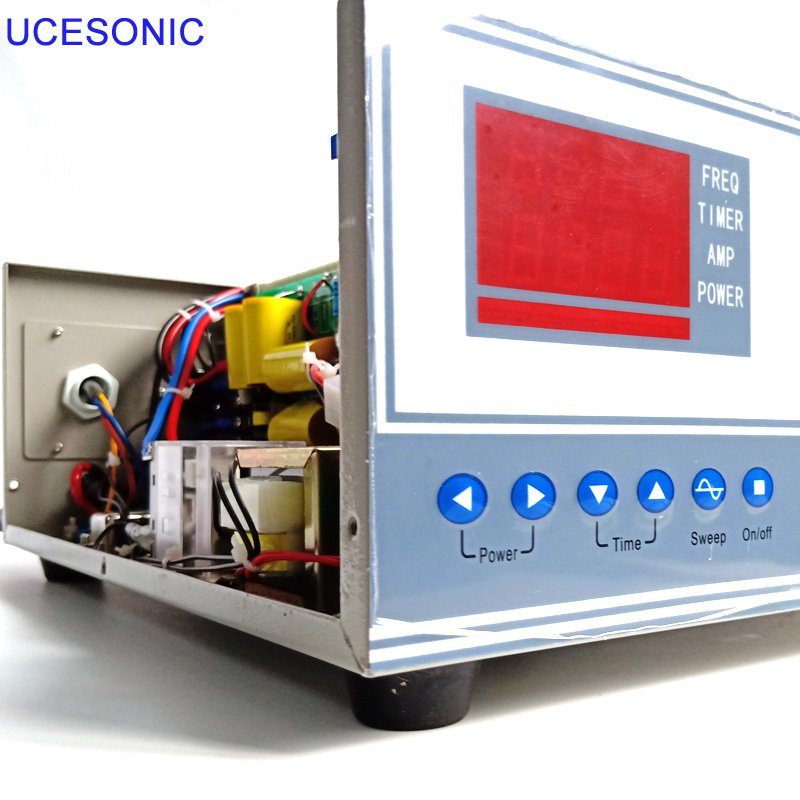

ultrasonic portable dishwasher cleaning generator

2019-05-26 12:01 admin
ultrasonic portable dishwasher cleaning generator
Advantages of ultrasonic dishwasher
A. Power saving, water saving and low noise because the ultrasonic dishwasher does not need motors and pumps, high-pressure water and circulating water when washing, and the movement and rotation of the mechanism are not needed. Everything is accomplished only by the quiet vibration of water molecules, so the noise of the machine is small, and it saves water and electricity.
B. The dishwasher has simple structure and long service life. Because it uses the vibration of water molecule produced by ultrasonic wave to wash dishes, it does not need the rotating mechanism of spray arm and the impeller mechanism of traditional dishwasher, and it does not need pumps, motors, circulating water system, etc. Therefore, the structure is much simpler, the chance of breakdown is much less, and the maintenance and after-sales service are simple.
C. Traditional dishwashers that do not need special detergents rely mainly on the chemical cleaning effect of special detergents, while ultrasonic dishwashers do not need detergents in principle. Adding detergent also plays an auxiliary deoiling role, and there is no special requirement for detergent.
D. High cleanliness, no dead-angle ultrasonic dishwasher uses high-frequency vibration water to clean, high cleanliness, no dead-angle can not be cleaned, especially suitable for Chinese dishware cleaning and ultrasonic washing water-saving, power-saving, low noise.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
