ultrasonic sweep generator module 28khz-40khz

2019-05-20 12:16 admin
ultrasonic sweep generator module 28khz-40khz

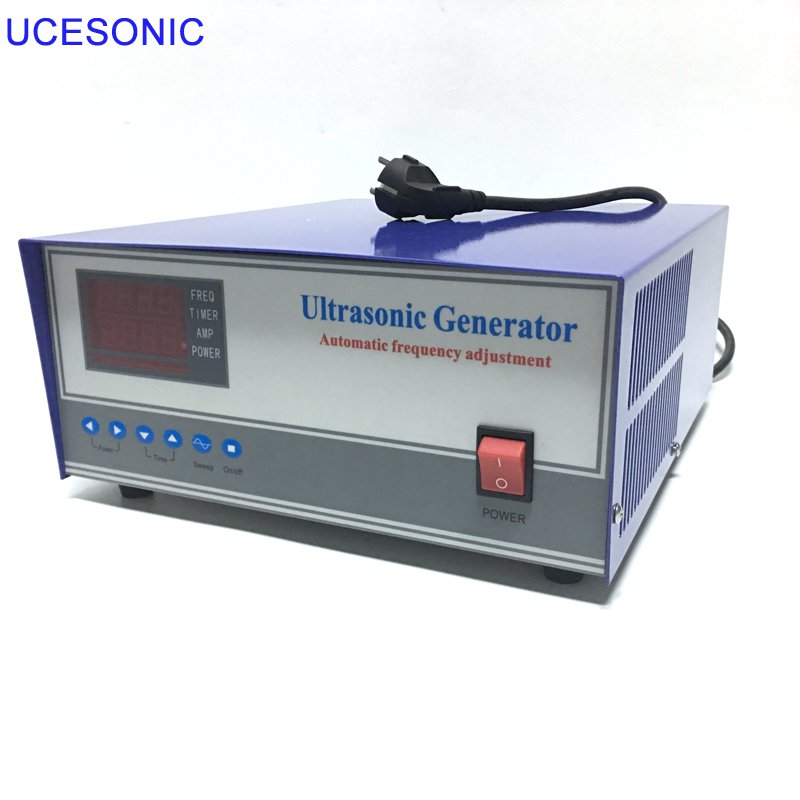

Thank you for using our ultrasonic generator. In order to improve the complex defect of the shunting process, this machine upgrades the circuit, program and components. After more than two years of repeated testing and factory practice, a new intelligent digital display ultrasonic generator with complete functions and simple shunting is introduced.
(1) It has timing function and can realize timing switch;
(2) It has the function of sweeping frequency to realize sweeping frequency scouring and cleaning;
(3) It can display ultrasonic frequency, output wattage and current at the same time, which is more intuitive and clear.
(4) It has the functions of over-current, over-load and over-heat protection;
(5) The machine adopts high-power IBGT amplifier output drive transducer, which makes the ultrasonic wave more powerful in liquid cavitation.
(6) This machine adopts PWM control chip to achieve high-efficiency dynamic response.
1. Timing range: 0-60 minutes 2, ambient temperature: 0-40 degrees Celsius 3, relative humidity: 40% - 90% 4, maximum temperature: 60 degrees Celsius 5, regulation range: 2% - 100% (short shutdown press pause)

Type

Power(W)

Frequency (KHz)

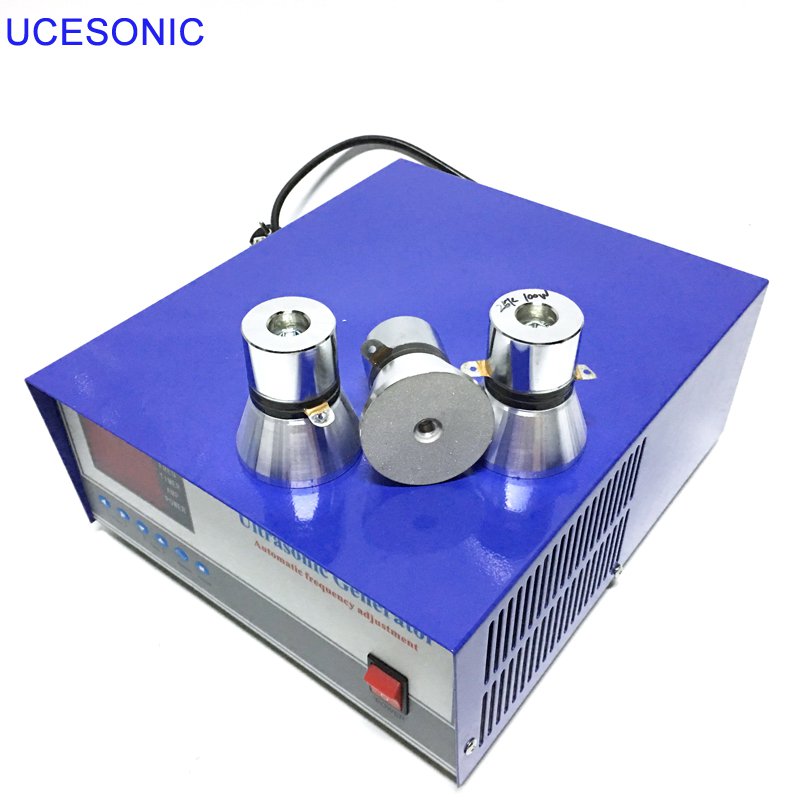

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
