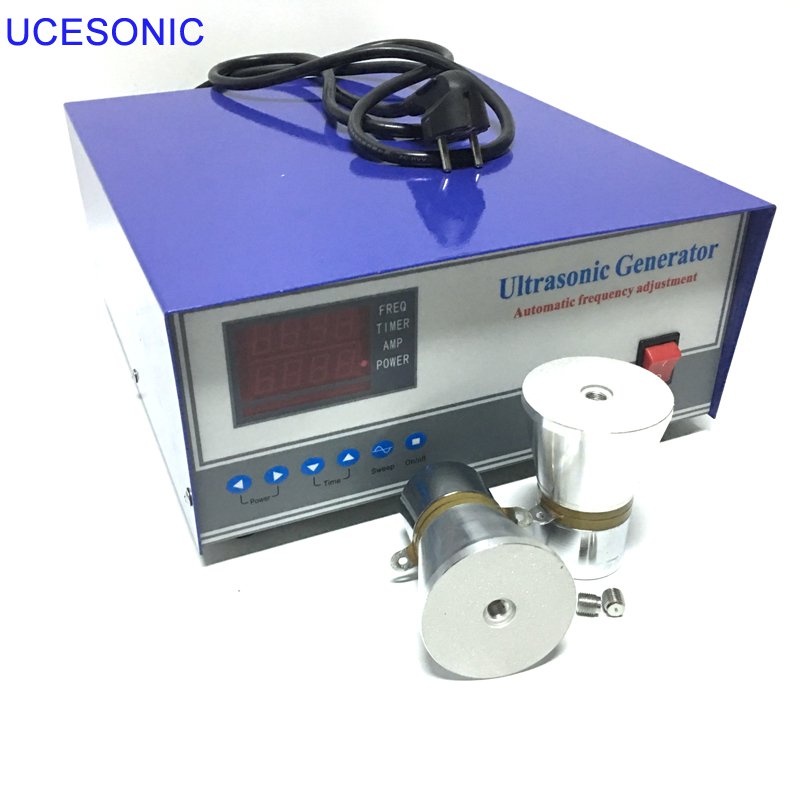

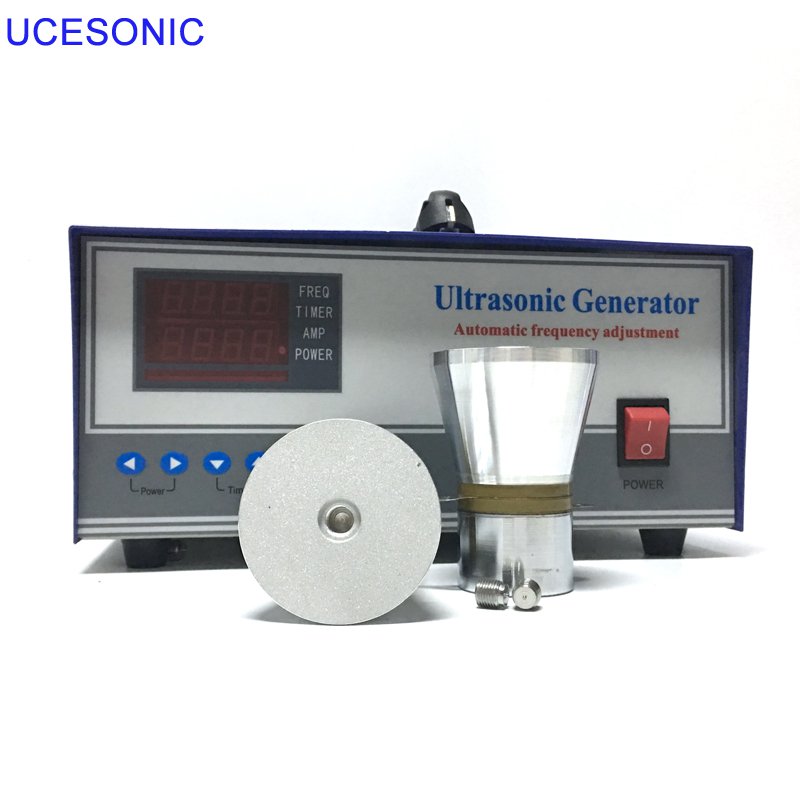

ultrasonic washer generator for ultrasonic parts washer
The power can be adjusted. The generator adopts a safe voltage regulation mode to adjust the output power of the ultrasonic generator without pole. The frequency modulation mode is changed to adjust the power. Customers can choose the adjustment mode according to their needs.
With frequency adjustable function: a generator can adjust the use of multiple frequency bands, but the company engineers professionally declare: each frequency band chip program is different, inductance coil ratio is different, transformer diameter is different, need to be debugged and used under the guidance of the manufacturer, large-scale change of frequency will damage the machine.

In 2012, our company launched a mature model of ultrasonic generator, after more than 20 years of testing, mature technology, stable quality, simple debugging, classic appearance of a model, characterized by powerful ultrasonic cleaning.
1. The output power is 0-100% adjustable.
2. Over-current, over-temperature, short-circuit protection function;
3. Short circuit protection indication function;
4. Sweeping function;
5. Triangular wave detection and correction function: It can guarantee the transducer in real time.
6. Frequency tracking range: 4KHz (optional);
7. Allowable load: rated power * 80%. (The actual output power is too long to use will cause damage to the transducer).

Type

Power(W)

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
