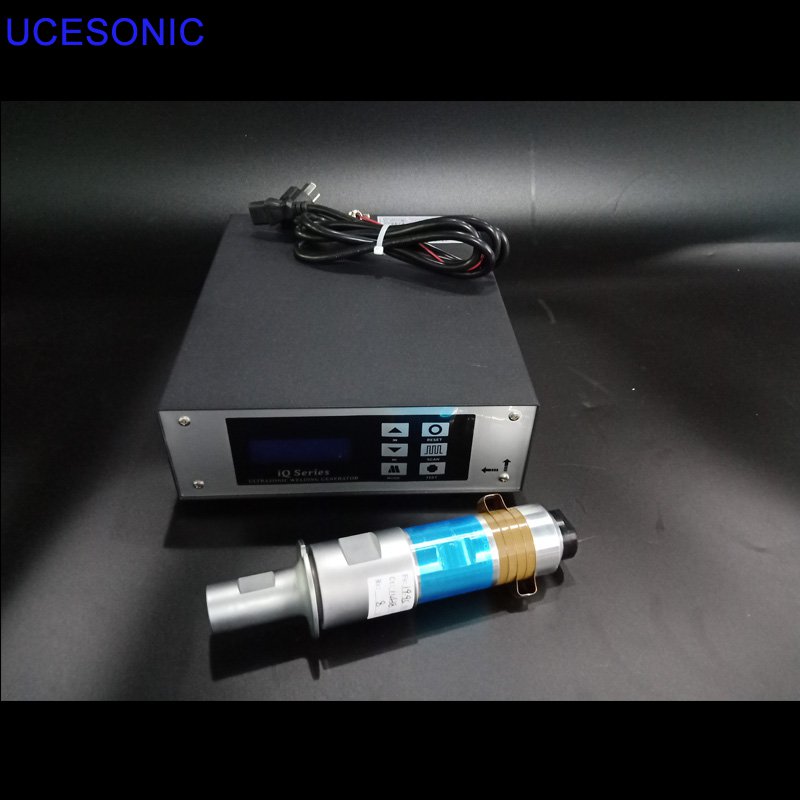

ultrasonic welder circuit generator foe 20khz 2000W
ultrasonic welding generator uses high frequency vibration wave to transmit to the surface of two objects to be welded. Under the condition of pressure, the two surfaces friction each other to form a fusion of molecular layers. Ultrasound welding is through the
ultrasonic generator to convert 50/60 Hz current into 15, 20, 30 or 40 KHz electric energy, and the converted high frequency electric energy is converted into the same frequency again through the transducer. Rate of mechanical movement, then mechanical movement through a set of amplitude-changing horn device to transfer to the welding head, the welding head will receive vibration energy to the joint of the workpiece to be welded, in this area, vibration energy is converted into heat energy through friction, melting plastic. Ultrasound can be used not only to weld hard thermoplastic plastics, but also to process fabrics and films. When ultrasound acts on the contact surface of thermoplastic plastics, it will produce tens of thousands of high frequency vibration per second. This kind of high frequency vibration can reach a certain amplitude. Ultrasound energy is transmitted to the welding area through the upper weldment. Because the acoustic resistance of the welding area, i.e. the interface between two welding joints, is large, local high. Temperature, however, in the existing technology, the ultrasonic welding machine is prone to interval in the work, can not carry out continuous work, and there is no special transport equipment, resulting in a slower work efficiency, at the same time, it needs to consume manpower to operate and supervise. To this end, we propose a continuous welding ultrasonic welding machine.
Type |
Power(W) |
Frequency (KHz) |
Voltage |
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system |
UCE-WTI-100W |
100W |
28khz/40khz |
110V or220V |
UCE-WTI-300W |
300W |
28khz/40khz |
110V or220V |
UCE-WTI-500W |
500W |
15KHz/20khz/28khz/40khz |
110V or220V |
UCE-WTI-900W |
900W |
15KHz/20khz/28khz |
110V or220V |
UCE- WTI-1500W |
1500W |
15KHz/20khz |
110V or220V |
UCE- WTI-1800W |
1800W |
15KHz/20khz |
220V |
UCE- WTI-2000W |
2000W |
15KHz/20khz |
220V |
UCE- WTI-2600W |
2600W |
15KHz |
220V |
UCE- WTI-3200W |
3200W |
15KHz |
220V |
UCE- WTI-4200W |
4200W |
15KHz |
220V |
