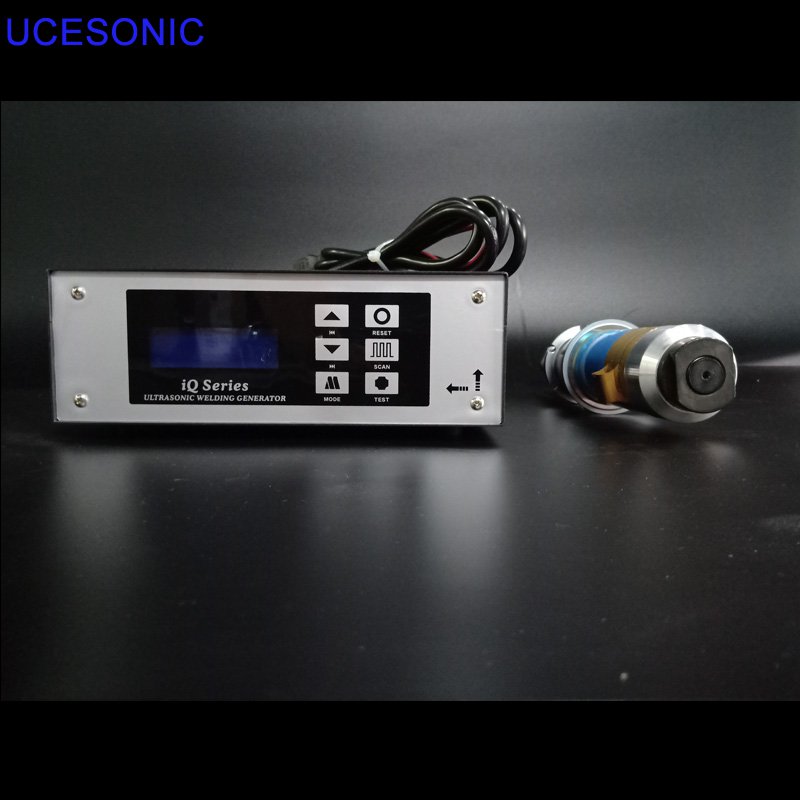

ultrasonic welding of fabric generator 15khz

Built-in computer digitization of various parameters, automatic compensation amplitude, no-load amplitude is small, when the load is increased, amplitude and power are amplified synchronously, so as to effectively protect transducer and welding head mould, with higher welding accuracy; internal power amplification adopts full-bridge IGBT module, which has high ultrasonic conversion rate and can meet various welding requirements; more advanced protection circuit, output sound overload, mold burst. However, when the breakdown is overloaded, the built-in computer detection circuit cuts off the output in a very short time to protect the internal circuit. 6. The control wiring of the electric box is very simple, and the two air plugs behind it.



Main Characteristics of Ultrasound Welding Generator



1. Amplitude compensation with step-by-step function;

2. Welding amplitude can be adjusted from 10% to 100% (1% accuracy);

3. Die impedance analysis + protection + overload protection;

Type	Power(W)	Frequency (KHz)	Voltage
AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
UCE-WTI-100W	100W	28khz/40khz	110V or220V
UCE-WTI-300W	300W	28khz/40khz	110V or220V
UCE-WTI-500W	500W	15KHz/20khz/28khz/40khz	110V or220V
UCE-WTI-900W	900W	15KHz/20khz/28khz	110V or220V
UCE- WTI-1500W	1500W	15KHz/20khz	110V or220V
UCE- WTI-1800W	1800W	15KHz/20khz	220V
UCE- WTI-2000W	2000W	15KHz/20khz	220V
UCE- WTI-2600W	2600W	15KHz	220V
UCE- WTI-3200W	3200W	15KHz	220V
UCE- WTI-4200W	4200W	15KHz	220V
