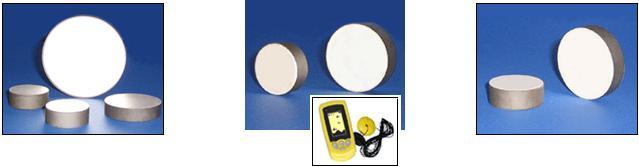

Piezo Ceramic (PZT) for Ultrasonic Fish Finder

Piezo Ceramic (PZT) for Ultrasonic Fish Finder

spec	dimension (mm)	Thickness Frequency ft (KHz)	Radial Frequency fs(KHz)	Capaciatance C (pf)	Impedance Zt (Ω)	K33(%)	Kp(%)
UCE-1930	Ø19×3.0		215±2%	877±12.5%			≥50
UCE-2585	Ø25×8.5	235±2%		650±12.5%	≤45	≥58
UCE-2510	Ø25×10	200±2%		550±12.5%	≤45	≥58
UCE-27489	Ø27.4×8.9	215±2%		1230±12.5%	≤45	≥59
UCE-27410	Ø27.4×10	200±2%		665±12.5%	≤45	≥58
UCE-43510	Ø43.5×10	200±2%	50±1	1430±12.5%	≤25	≥53	≥50
UCE-4596	Ø45×9.6	200±2%	50±1	3076±12.5%	≤45	≥59	≥60
UCE-4510	Ø45×10	200±2%	50±1	1790±12.5%	≤25	≥58	≥54
UCE-605	Ø60×5	420±2%		5250±12.5%	≤15	≥53
UCE-54910	Ø54×Ø9×10	207±2%		2070±12.5%	≤45	≥53
