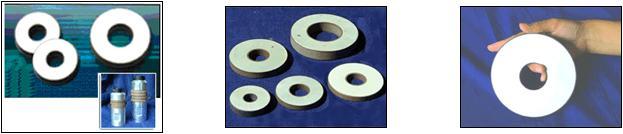

Piezo Ceramic (PZT) chip for Ultrasonic Welding Machine

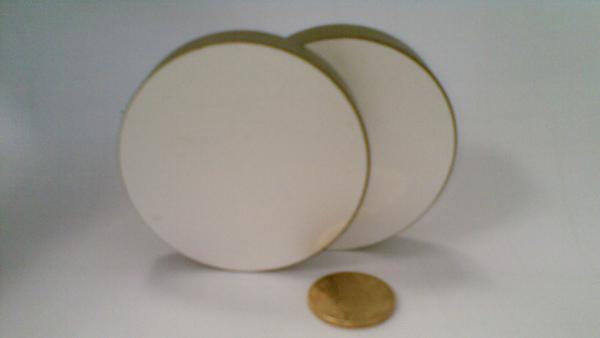

Piezo Ceramic (PZT) chip for Ultrasonic Welding Machine

Piezo Ceramic (PZT) chip for Ultrasonic Welding Machine

spec	Dimension (mm)	Radial frequency (KHz)	Capacitance (pf)	Dielectric dissipation factor tanδ(%)	Electromechanical coupling coefficient (Kr)	Impedance Zr(Ω)	Thickness frequency (KHz)	Mechanical quality factor (Qm)
UCE-25103	Φ25×Φ10×3	66.4	1240±12.5%	≤0.3	≥0.46	≤15	683±5%	800
UCE-225104	Φ25×Φ10×4	66.4	930±12.5%	≤0.3	≥0.46	≤15	512±5%	800
UCE-40155	Φ40×Φ12×5	45.9	2070±12.5%	≤0.3	≥0.46	≤15	410±5%	800
UCE-40155	Φ40×Φ15×5	42.2	1960±12.5%	≤0.3	≥0.46	≤15	323±5%	500
UCE-40176	Φ40×Φ17×6	40.5	1555±12.5%	≤0.3	≥0.46	≤15	341±5%	800
UCE-40205	Φ40×Φ20×5	37.9	1700±12.5%	≤0.3	≥0.47	≤15	410±5%	800
UCE-50206	Φ50×Φ20×6	33.2	2490±12.5%	≤0.3	≥0.46	≤15	341±5%	500
UCE-501765	Φ50×Φ17×6.5	34.8	2430±12.5%	≤0.3	≥0.46	≤15	315±5%	800
UCE-50236	Φ50×Φ23×6	31.2	2340±12.5%	≤0.3	≥0.47	≤15	341±5%	800
UCE-50276	Φ50×Φ27×6	29.3	2100±12.5%	≤0.3	≥0.47	≤15	341±5%	800
UCE-603010	Φ60×Φ30×10	25.3	1922±12.5%	≤0.3	≥0.47	≤18	205±5%	800
