piezo Transducer

piezo Transducer

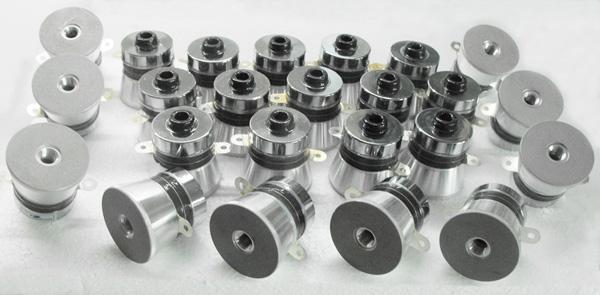

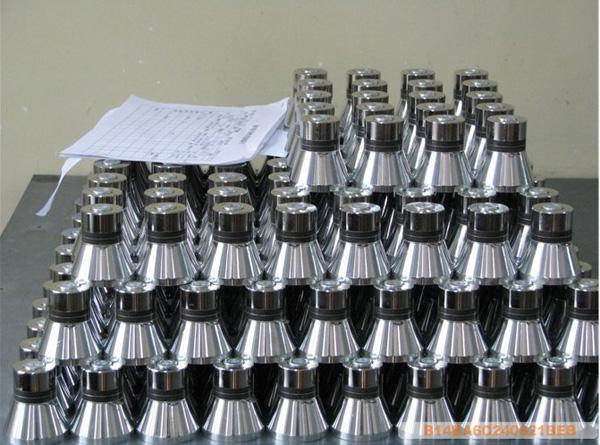

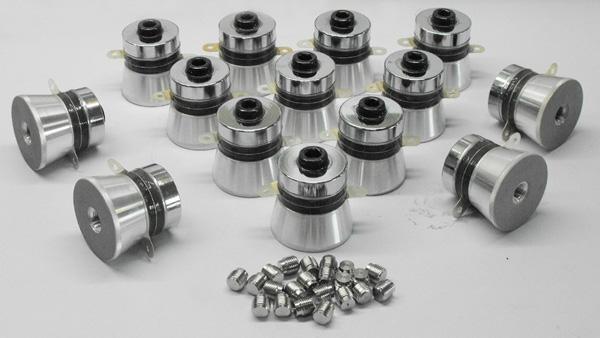

Piezo Transducer is one of main products of at UCE ultrasonic,which used the piezoelectric effort to realize transduction between electric and sound energy,also named as BLT transducer,ultrasonic transducer normally used in ultrasonic cleaning industry,high power ultrasonic etc.

piezo transducer also named ultrasonic transducer which widely used in industy cleaning,piezo transducer is composed by piezoelectric ceramic,electric chip and radiant surface etc.
 piezo Transducer

Product Name Method

Eg,  UCE-6845D-20LA PZT8

UCE mean our company logol, “68”  is stand for the dimetions of  radiation head, “45” is stand for the dimetions of the piezoelectric ceramic,PZT8 is mean the material of piezoelectric ceramic,PZT8 is yellow ceramic,PZT4 is black.
piezo Transducer

Type

Lengthmm

Weightg

FrequencyKHz

Resonance Impedance

Ω

Static Capacity

pF±10%

Input PowerW

UCE-UT-20100

PZT-8



94



900



20



10-20



5200



100



UCE-UT-25100

PZT-4

77



710



25



10-20



6600



100



UCE-UT-28120

PZT-4

66



720



28



10-20



7800



120



UCE-UT-28100

PZT-8

66



625



28



10-20



5200



100



UCE-UT-28100

PZT-4

66



624



28



10-20



6600



100



UCE-UT-30100

PZT-8

61



555



30



10-20



5200



100



UCE-UT-2560

PZT-4

77



530



25



10-20



5400



60



UCE-UT-2860

PZT-8

68



470



28



10-20



3800



60



UCE-UT-2850

PZT-4

82



425



28



10-20



4100



50



UCE-UT-3360

PZT-8

58



420



33



10-20



3800



60



UCE-UT-4060

PZT-8

55



300



40



10-20



3800



60



UCE-UT-4060

PZT-4

56



310



40



10-20



5400



60



UCE-UT-4050

PZT-4

54



260



40



10-20



4100



50



UCE-UT-4050-1

PZT-4

57



300



40



10-20



4100



50



UCE-UT-5435

PZT-4

36



135



54



10-20



3200



35



UCE-UT-6860

PZT-8

80



460



68



10-20



3800



60



UCE-UT-68120

PZT-4

67



588



68



10-20



7800



120



UCE-UT-8060

PZT-4

60



325



80



10-20



5400



60



UCE-UT-12060

PZT-4

56



260



120



10-20



5400



60



UCE-UT-13550

PZT-4

54



215



135



10-20



4200



50
