Ultrasonic Transducers Name Method
Eg, UCE-6845D-20LA PZT8
UCE mean our company logol,
“ 68” is stand for the dimetions of radiation head, “45” is stand for the dimetions of the piezoelectric ceramic,PZT8 is mean the material of piezoelectric ceramic,PZT8 is yellow ceramic,PZT4 is black.

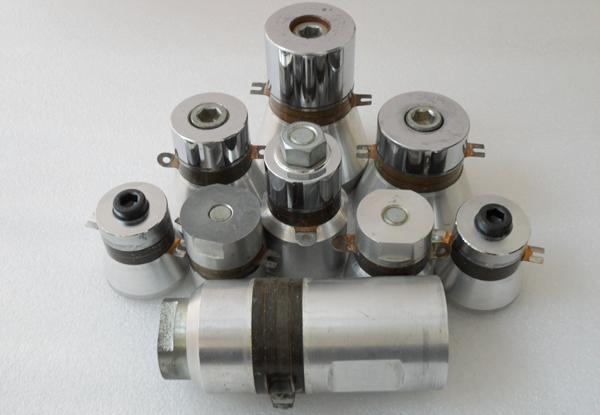

Ultrasonic Transducers is one of main products of at UCE ultrasonic,which used the piezoelectric effort to realize transduction between electric and sound energy,also named as BLT transducer,ultrasonic transducer normally used in ultrasonic cleaning industry,high power ultrasonic etc.
|
Type |
Length（mm） |
Weight（g） |
Frequency（KHz） |
Resonance Impedance （Ω） |
Static Capacity （pF）±10% |
Input Power（W） |
|
UCE-UT-20100 PZT-8 |
94 |
900 |
20 |
10-20 |
5200 |
100 |
|
UCE-UT-25100 PZT-4 |
77 |
710 |
25 |
10-20 |
6600 |
100 |
|
UCE-UT-28120 PZT-4 |
66 |
720 |
28 |
10-20 |
7800 |
120 |
|
UCE-UT-28100 PZT-8 |
66 |
625 |
28 |
10-20 |
5200 |
100 |
|
UCE-UT-28100 PZT-4 |
66 |
624 |
28 |
10-20 |
6600 |
100 |
|
UCE-UT-30100 PZT-8 |
61 |
555 |
30 |
10-20 |
5200 |
100 |
|
UCE-UT-2560 PZT-4 |
77 |
530 |
25 |
10-20 |
5400 |
60 |
|
UCE-UT-2860 PZT-8 |
68 |
470 |
28 |
10-20 |
3800 |
60 |
|
UCE-UT-2850 PZT-4 |
82 |
425 |
28 |
10-20 |
4100 |
50 |
|
UCE-UT-3360 PZT-8 |
58 |
420 |
33 |
10-20 |
3800 |
60 |
|
UCE-UT-4060 PZT-8 |
55 |
300 |
40 |
10-20 |
3800 |
60 |
|
UCE-UT-4060 PZT-4 |
56 |
310 |
40 |
10-20 |
5400 |
60 |
|
UCE-UT-4050 PZT-4 |
54 |
260 |
40 |
10-20 |
4100 |
50 |
|
UCE-UT-4050-1 PZT-4 |
57 |
300 |
40 |
10-20 |
4100 |
50 |
|
UCE-UT-5435 PZT-4 |
36 |
135 |
54 |
10-20 |
3200 |
35 |
|
UCE-UT-6860 PZT-8 |
80 |
460 |
68 |
10-20 |
3800 |
60 |
|
UCE-UT-68120 PZT-4 |
67 |
588 |
68 |
10-20 |
7800 |
120 |
|
UCE-UT-8060 PZT-4 |
60 |
325 |
80 |
10-20 |
5400 |
60 |
|
UCE-UT-12060 PZT-4 |
56 |
260 |
120 |
10-20 |
5400 |
60 |
|
UCE-UT-13550 PZT-4 |
54 |
215 |
135 |
10-20 |
4200 |
50 |
