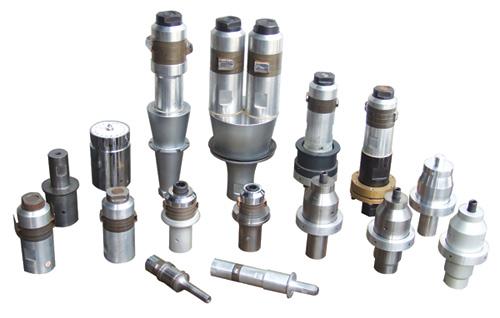

KoreanUltrasonic Transducer for Welding,Drilling and Polishing
High-power ultrasonic drilling machine, welding machine,polishing machine vibrator have small machinery loss, high efficiency electricity and sound transfer, big swing and less heat.
To design and fabricate the transducers according to customers' requirements..
Ultrasonic transducer for welding, principle of vibration similar with ultrasonic cleaning transducer, but it is Higher power than cleaning transducer. they are belongs to high-power inverter transducer . Usually working with ultrasonic transformers and work together in plastic welding head of the vibration system. To weld on plastic, metal materials Etc.
Ultrasonic transducer for ultrasonic welding is through transducer for ultrasonic vibration of pressure condition, by welding things contact surface friction between high thermal effect of synthesis ", thus achieved the welding purpose. Ultrasonic welding work of cleaning transducer, In general Speaking,it works with type power transducer peak power to calculate the instantaneous hardworking and its power.
Ultrasonic welding products has the following characteristics: the transducer low impedance 1.1 resonance. Mechanical Q value high 1.2.
130 electro-acoustic conversion efficiency low calorific value of 1.4
1.5 amplitude, high velocity.
Specification
|
Type
|
Full-length（mm）
|
Joint Bolt（mm）
|
Frequency（KHz）
|
Resonance Impedance（Ω）
|
Capacity（pF）
|
Input Power
（W）
|
|
UCE-153
|
153
|
M20×1.5
|
15
|
15
|
13000
|
2500
|
|
UCE-167
|
167
|
M20×1.5
|
15
|
10
|
9500
|
2000
|
|
UCE-171
|
171
|
M18×1.5
|
15
|
12
|
12500
|
1500
|
|
UCE-118
|
118
|
M20×1.5
|
20
|
15
|
15000
|
1800
|
|
UCE-128
|
128
|
M18×1
|
20
|
10
|
11000
|
2000
|
|
UCE-124
|
124
|
M18×1.5
|
20
|
12
|
10000
|
1500
|
|
UCE-112
|
112
|
1/2-20 UNF
|
20
|
15
|
9000
|
700
|
|
UCE-133
|
133
|
1/2-20 UNF
|
20
|
15
|
10000
|
900
|
|
UCE-121
|
121
|
M18×1.5
|
20
|
15
|
6000
|
600
|
|
UCE-77
|
77
|
M10×1.5
|
30
|
5
|
5500
|
500
|
|
UCE-92.1
|
92.1
|
M10×1
|
28
|
20
|
3000
|
200
|
|
UCE-91
|
91
|
M8×1
|
28
|
25
|
2200
|
100
|
|
UCE-94
|
94
|
1/2-20 UNF
|
28
|
20
|
4000
|
250
|
|
UCE-128-1
|
128
|
1/2-20 UNF
|
20
|
10
|
20000
|
2000
|
|
UCE-124-1
|
124
|
1/2-20 UNF
|
20
|
10
|
16000
|
1500
|
|
UCE-128-1
|
128
|
1/2-20 UNF
|
20
|
10
|
12500
|
1300
|
|
UCE-132
|
132
|
1/2-20 UNF
|
20
|
10
|
11000
|
1500
|
|
UCE-123
|
123
|
1/2-20 UNF
|
20
|
10
|
9500
|
900
|
|
UCE-171-1
|
171
|
M18×1.5
|
15
|
12
|
10000
|
2000
|
|
UCE-71-1
|
71
|
M8×1
|
35
|
25
|
2200
|
100
|
|
UCE-66
|
66
|
M8×1.25
|
38
|
40
|
1200
|
100
|
|
UCE-65
|
65
|
M8×1
|
38
|
14
|
3300
|
200
|
