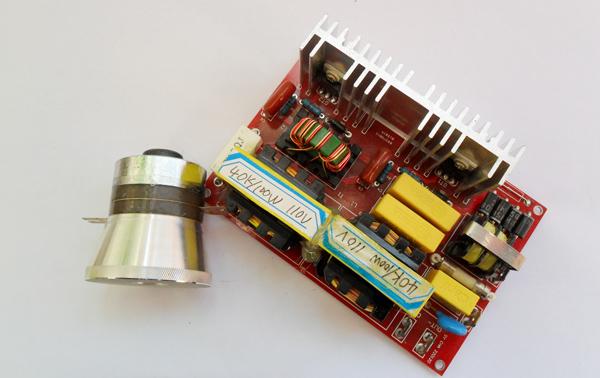

110V-220V Small ultrasonic circuit board

110V-220V Small ultrasonic circuit board
110V-220V Small ultrasonic circuit board
UCE produced 110V-220V ultrasonic circuit board using a self-excited control technology, it is to small size, light weight, strong power, stable and reliable, and so made a multi-experts. Self-excited circuit but also ensure the machine has all along been in the best working condition, you can maximize the potential of ultrasonic transducer.
UCE Ultrasonic Circuit Board 50W, 100W AC 110V-240V, 50/60HZ CE and FCC Certified.
110V-220V Small ultrasonic circuit board

Model



PowerW



Frequency (khz)



Operating voltage



Maximum output

current

UCE-TP50W

50

28-40

AC110V-220V 50/60HZ

0.45A

UCE-TP100W

100

28-40

AC110V-220V 50/60HZ

0.9A

110V-220V Small ultrasonic circuit board

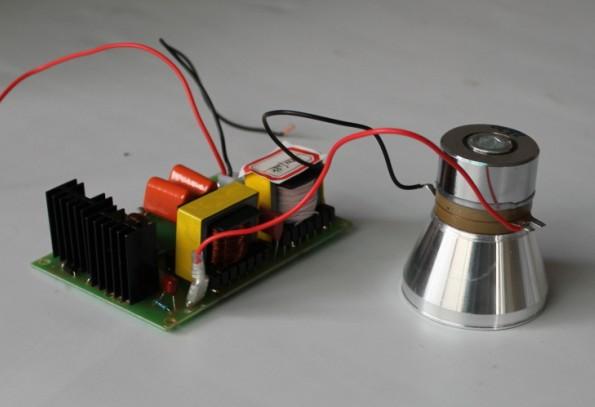

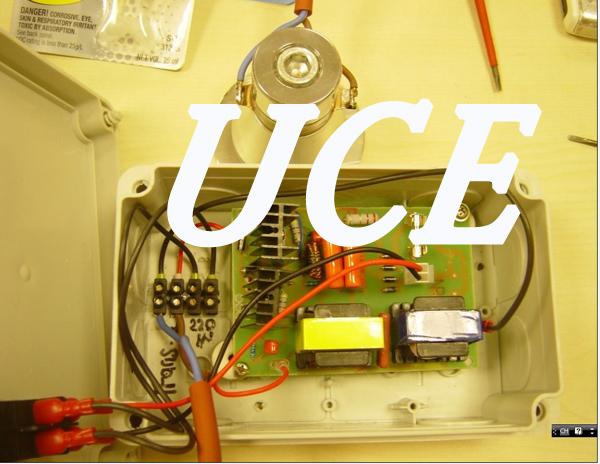

Board and shake head (ceramic transducer) Wiring instructions:

1. Under no-load circuit board can not power;
2. Installed cleaning lotion in the case of no inventory is not power;
3. Shock first two lugs, two ceramic middle lug of the cathode, by the upper and lower metal columns for the negative, remember not to take anti-;
4. Transducer covered with silver layer on the ceramic side is negative, the other side of a larger two silver layer as the cathode, the smaller one for the negative plate, welded to welding power supply line must have two silver layers in side on one side and vibration surface, wash basin can be pasted in the next (this is the purchase of a ceramic transducer assembly instructions); silver layer ceramic chip does not heat, soldering iron power cord when the temperature should not exceed 280 degrees, preferably constant temperature soldering iron, the iron temperature setting of 250 degrees.
5. The larger side of the head shock (with a screw) for the shock surface can be glued to the bottom of wash basins, wash basin should be grounded;
6. Shock head or the transducer ceramic paste applied shock head firmly on clean plastic pelvic floor can also be used AB glue, but less effective, such as epoxy resin ratio of 10:4 can be used;

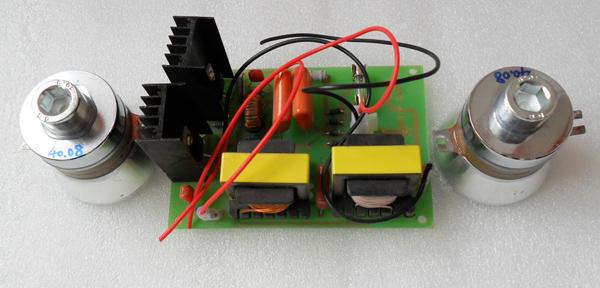

7. Two shock heads and join in the terminal on the circuit board, a circuit board with two shock heads up, also supporting the use of head with a shock;
