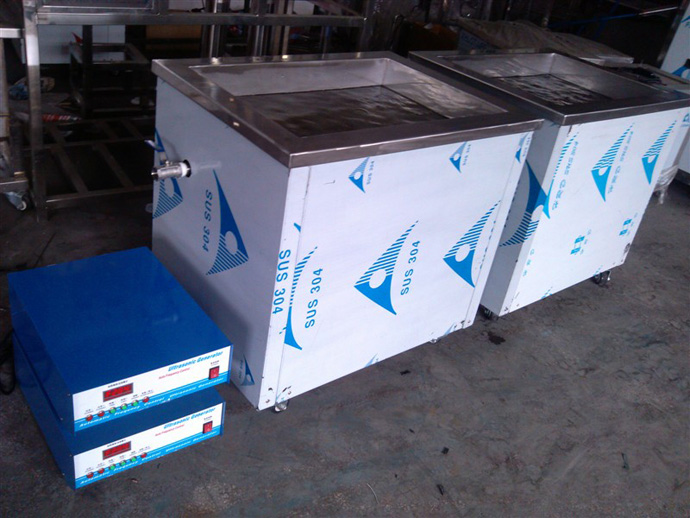

Ultrasonic dishwasher
Ultrasonic dishwasher is utilized principle of ultrasonic cleaning: When the ultrasonic through the liquid medium, will be very high frequency vibration compression liquid medium, the liquid molecules to produce an alternating positive and negative shock wave. When the sound intensity reaches a certain value, the growth of tiny liquid sharp transient cavitation bubbles and closed strong, have a strong micro-explosion and shock wave surface to be cleaned of dirt destruction, and falling down from the surface to be cleaned. Although the role of each of the cavitation bubbles is not large, but there are a million per second cavitation bubbles in the role, it has a good cleaning effect.
1, small power, water, noise
Because ultrasonic dishwasher does not require motors, pumps, no high-pressure water wash, recycled water, movement and rotation does not require agencies all only to quiet the vibration of water molecules and complete, so the machine noise, and section water, power.
2, dishwasher simple structure, long service life
As a result of the ultrasonic vibration of water molecules to produce the dishes, do not require traditional dishwasher spray arm rotation mechanism, stir the water impeller institution, much less pumps, motors, circulating water system, so the structure is much simpler to produce much less chance of failure, repair and service simple.
3, without the use of special detergent
Traditional dishwasher detergent dedicated mainly by chemical cleaning effect, and can not in principle ultrasonic dishwasher detergent. Degreasing detergent also play a supporting role, no special requirements for detergent.
4, high cleanliness, not dead
Ultrasonic high frequency vibration dishwasher use water to clean, clean and high cleaning less dead does not exist, especially suitable for Chinese dishes and cleaning ultrasonic cleaning water saving, energy saving, low noise.
Type |
Internal size |
Outsize mm |
Power(W) |
Heating(W) |
Total power(W) |
voltage |
UCE-UD1006 |
280×210×210 |
320×250×350 |
300 |
1000 |
1300 |
220V |
UCE-UD1012 |
400×310×280 |
520×430×600 |
600 |
3000 |
3600 |
220V |
UCE-UD1018 |
490×360×320 |
610×480×675 |
900 |
3000 |
3900 |
220V |
UCE-UD1024 |
630×430×320 |
740×550×675 |
1200 |
4000 |
5200 |
220V |
UCE-UD1030 |
630×530×320 |
750×650×675 |
1500 |
4000 |
5500 |
220V |
UCE-UD1036 |
680×530×360 |
800×650×700 |
1800 |
5000 |
6800 |
220V |
UCE-UD1040 |
680×570×400 |
830×710×735 |
2000 |
5000 |
7000 |
220V |
UCE-UD1041 |
730×570×450 |
880×710×735 |
2400 |
6000 |
8400 |
220V |
UCE-UD1042 |
790×670×510 |
940×765×785 |
3000 |
6000 |
9000 |
380V |
UCE-UD1043 |
850×770×570 |
990×820×785 |
4000 |
7000 |
11000 |
380V |
UCE-UD1044 |
910×820×620 |
1050×880×840 |
5000 |
7000 |
12000 |
380V |
UCE-UD1045 |
960×870×680 |
1100×940×920 |
8000 |
8000 |
16000 |
380V |
UCE-UD1046 |
1100×930×730 |
1160×1000×980 |
10000 |
8000 |
18000 |
380V |
