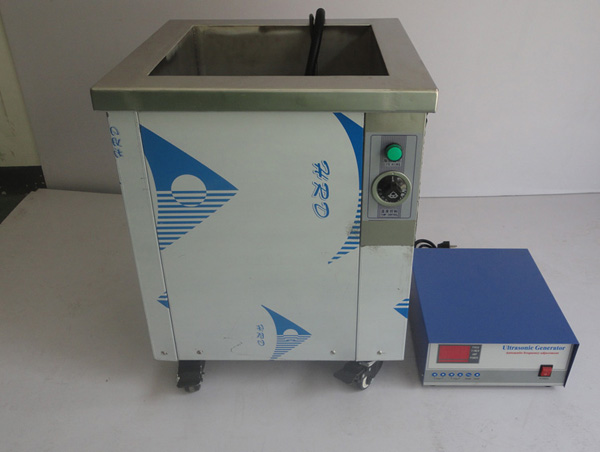

Turbocharger ultrasonic cleaner
Turbocharger, piston aviation engine cylinder so as to increase the intake pressure position. Air into the engine cylinder before the first compressed by the turbocharger to increase the density of the air, so that more air into the cylinders filled, thereby increasing the efficiency of the engine. Turbocharger equipped engine in addition to the output of a large power takeoff, but also can improve the height of the characteristics of the engine.
Since the turbocharger often in the high-speed, high temperature, exhaust gas turbocharger turbine end temperature of 700-900 ℃, the turbocharger rotor high-speed rotation of tens of thousands to more than two hundred thousand revolutions, so in order to ensure the turbocharger normal work. In keeping clean this regard, we must prevent debris falling into the turbocharger rotor damage. Furthermore, its oil pipeline due to high temperature, the internal oil likely to have coke part this will cause the turbocharger bearing roller insufficient damage. Therefore, the lubricating oil pipeline in the running for some time to be cleaned.Type | Internal size L*W*H (mm) |
Outsize mm L*W*H (mm) |
Frequency (Khz) | Power(W) | Heating(W) | Total power(W) | voltage |
UCE-1006ST | 280×210×210 | 320×250×350 | 20,28,33,40,80,130 | 300 | 1000 | 1300 | 220V |
UCE-1012ST | 400×310×280 | 520×430×600 | 20,28,33,40,80,130 | 600 | 3000 | 3600 | 220V |
UCE-1018ST | 490×360×320 | 610×480×675 | 20,28,33,40,80,130 | 900 | 3000 | 3900 | 220V |
UCE-1024ST | 630×430×320 | 740×550×675 | 20,28,33,40,80,130 | 1200 | 4000 | 5200 | 220V |
UCE-1030ST | 630×530×320 | 750×650×675 | 20,28,33,40,80,130 | 1500 | 4000 | 5500 | 220V |
UCE-1036ST | 680×530×360 | 800×650×700 | 20,28,33,40,80,130 | 1800 | 5000 | 6800 | 220V |
UCE-1040ST | 680×570×400 | 830×710×735 | 20,28,33,40,80,130 | 2000 | 5000 | 7000 | 220V |
UCE-1041ST | 730×570×450 | 880×710×735 | 20,28,33,40,80,130 | 2400 | 6000 | 8400 | 220V |
UCE-1042ST | 790×670×510 | 940×765×785 | 20,28,33,40,80,130 | 3000 | 6000 | 9000 | 380V |
UCE-1043ST | 850×770×570 | 990×820×785 | 20,28,33,40,80,130 | 4000 | 7000 | 11000 | 380V |
UCE-1044ST | 910×820×620 | 1050×880×840 | 20,28,33,40,80,130 | 5000 | 7000 | 12000 | 380V |
UCE-1045ST | 960×870×680 | 1100×940×920 | 20,28,33,40,80,130 | 8000 | 8000 | 16000 | 380V |
UCE-1046ST | 1100×930×730 | 1160×1000×980 | 20,28,33,40,80,130 | 10000 | 8000 | 18000 | 380V |
OEM Ultrasonic Cleaning Mchine(Size, Frequency,Power)-----UCE ultrasonic |
Turbocharger ultrasonic cleaner
