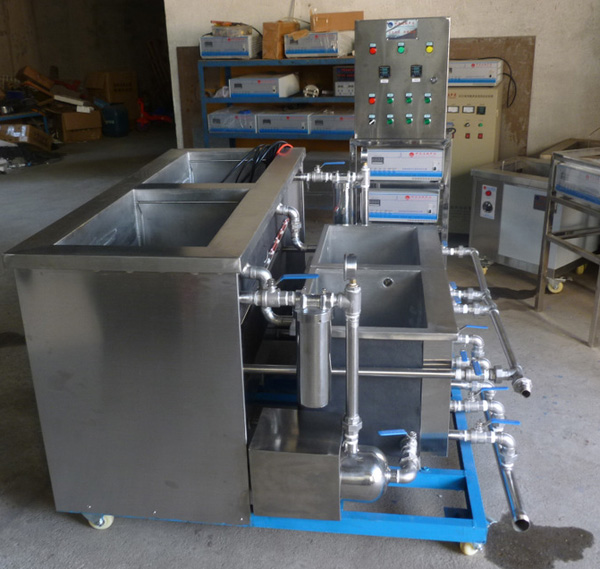

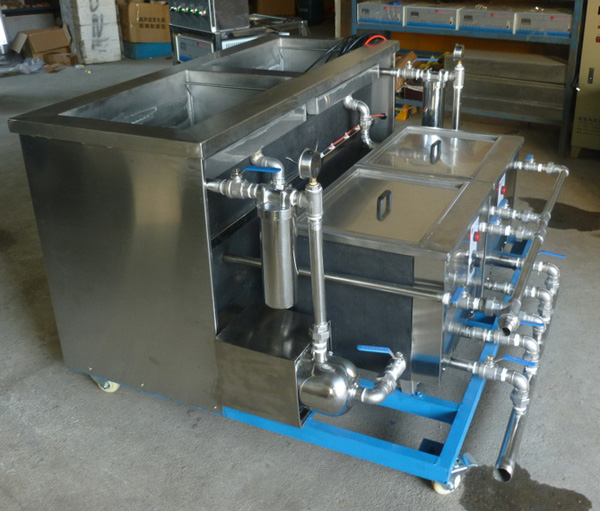

ultrasonic Circulating filter system

ultrasonic Circulating filter system

ultrasonic Circulating filter system

ultrasonic Circulating filter system

Scope of singleslot type circulation and filtration of ultrasonic cleaning machine, auto parts, electronic parts, plating, stainless steel valves, metal products, aluminum parts, plastic products, machinery, strap, mold, optical lens, jewelry, lens, spectacle frame, semiconductor wafer, spinneret filter and glassware cleaning; single groove ultrasonic cleaning machine, ultrasonic cleaning machine use water-based add a little additive as a cleaning agent, low cost, good cleaning effect is the best, most affordable cleaning equipment. Product features:
Adopt imported stainless steel plate and components, all stainless steel structure, beautiful appearance and durable.
The cleaning tank is provided with a heating and temperature control device, the temperature control range is 30 to 110..
Imported high quality transducer, strong ultrasonic power output.
The cleaning tank and the generator adopt split type design, and the use is convenient.
The generator adopts the liquid crystal display single chip microcomputer to drive the new circuit, the power can be adjusted, the ultrasonic wave cleaning time can be adjusted, the frequency display, the over current and the overload function make the generator more safe to rely on the work.
Ultrasonic vibration modes respectively with vibration and vibration of two, suitable for different cleaning requirements.
Ultrasonic cleaning machine, in addition to the standard size, can be customized according to customer requirements.
To the circulation and filtration system flow: the liquid in the liquid storage tank through a circulating water pump, filter, ultrasonic cleaning tank, cleaning groove overflow mouth, a liquid storage tank of a cyclic process, ensure the cleaning liquid of suspended dust away.

ultrasonic Circulating filter system ultrasonic Circulating filter system

ultrasonic Circulating filter system
