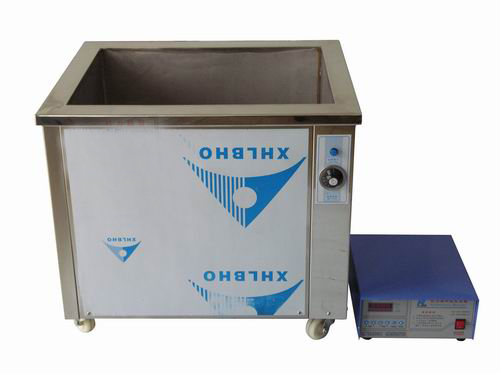

Ultrasonic single tank
Ultrasonic output frequency according to different working conditions to fine-tune the ultrasound sweep line, to improve the cleaning efficiency. Optional additional features: ultrasonic output power continuously adjustable, you can display the range 10 - 100%; digital The ultrasonic generator using IGBT module, microcontroller technology, more stable working state, the output power is more powerful.
Ultrasonic single tank Product Features:
☆ imported stainless steel plate and components, stainless steel structure, beautiful appearance and durable.
☆ cleaning tank with heating and temperature control devices, temperature control range 30 ~ 110 ℃. .
☆ imported high quality transducer, strong ultrasonic power output.
☆ cleaning tank and generator uses a split-body design, easy to use.
☆ The generator using the new circuit, power adjustable.
☆ ultrasonic vibration, respectively, bottom of vibration and both side vibration, suitable for different cleaning requirements.
☆ ultrasonic cleaning tank, in addition to standard sizes according to customer requirements.
Ultrasonic single tank - the scope of application areas:
The object of cleaning, degassing, sterilization, emulsification, mixing, displacement, extraction, and so on.
Electronic workshop, industrial and mining enterprises, laboratories, hospitals, watch, glasses shops, jewelry jewelery, mobile phone repair shop and the family.
Ultrasonic single tank - cleaning the object:
Electronic products, laboratory supplies, office supplies, household goods, computer motherboards and accessories, glassware, circuit boards, automotive parts, metal parts, medical devices, dentures and dental equipment, watches, glasses, jewelry, golf, shaving to be heads, coins, badges, dishes, bottles, fruits and so on.
Type | Internal size L*W*H (mm) |
Outsize mm L*W*H (mm) |
Frequency (Khz) | Power(W) | Heating(W) | Total power(W) | voltage |
UCE-1006ST | 280×210×210 | 320×250×350 | 20,28,33,40,80,130 | 300 | 1000 | 1300 | 220V |
UCE-1012ST | 400×310×280 | 520×430×600 | 20,28,33,40,80,130 | 600 | 3000 | 3600 | 220V |
UCE-1018ST | 490×360×320 | 610×480×675 | 20,28,33,40,80,130 | 900 | 3000 | 3900 | 220V |
UCE-1024ST | 630×430×320 | 740×550×675 | 20,28,33,40,80,130 | 1200 | 4000 | 5200 | 220V |
UCE-1030ST | 630×530×320 | 750×650×675 | 20,28,33,40,80,130 | 1500 | 4000 | 5500 | 220V |
UCE-1036ST | 680×530×360 | 800×650×700 | 20,28,33,40,80,130 | 1800 | 5000 | 6800 | 220V |
UCE-1040ST | 680×570×400 | 830×710×735 | 20,28,33,40,80,130 | 2000 | 5000 | 7000 | 220V |
UCE-1041ST | 730×570×450 | 880×710×735 | 20,28,33,40,80,130 | 2400 | 6000 | 8400 | 220V |
UCE-1042ST | 790×670×510 | 940×765×785 | 20,28,33,40,80,130 | 3000 | 6000 | 9000 | 380V |
UCE-1043ST | 850×770×570 | 990×820×785 | 20,28,33,40,80,130 | 4000 | 7000 | 11000 | 380V |
UCE-1044ST | 910×820×620 | 1050×880×840 | 20,28,33,40,80,130 | 5000 | 7000 | 12000 | 380V |
UCE-1045ST | 960×870×680 | 1100×940×920 | 20,28,33,40,80,130 | 8000 | 8000 | 16000 | 380V |
UCE-1046ST | 1100×930×730 | 1160×1000×980 | 20,28,33,40,80,130 | 10000 | 8000 | 18000 | 380V |
OEM Ultrasonic Cleaning Mchine(Size, Frequency,Power)-----UCE ultrasonic |
Ultrasonic single tank
