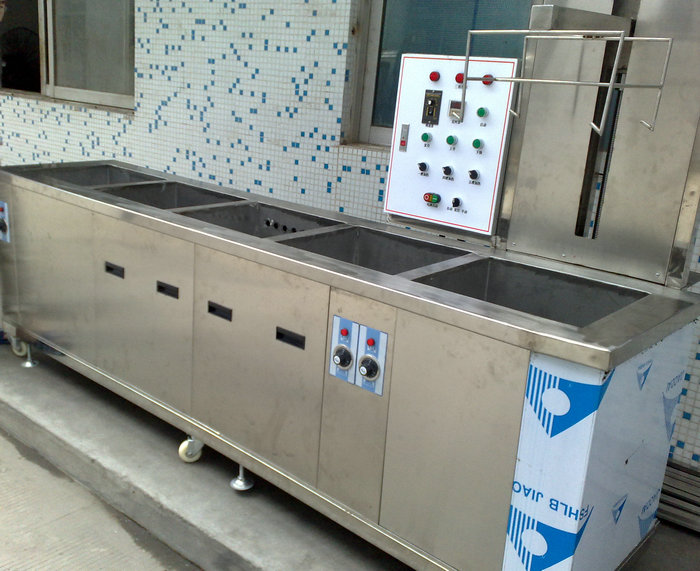

Dual Chamber ultrasonic cleaning machine

Dual Chamber ultrasonic cleaning machine
it use incombustibility organic solvent such as trichloroethylene, trichlorethane or environmental cleaner that have similar performances and so on to take the cleansing agent.

Cleaning Objects: to clean the colophony on electron components and grease on precision machinery components, dirt on watchband or watch rind and so on.

Advantage:
Fast dry merit, and suitable to the continuous production.
Set up the solvent filter-recovery system as an attachment, reduces the production cost.
Entire stainless steel structure, acid proof and bears the alkali, artistically and durable.
Set up as an attachment solvent heat up equipment and automatic temperature controls installment, temperature controls scope 30-1100C.Inner condenser system prevents the solvent volatility effectively.Sets up as an attachment the sharp freeze-drying system, may cause the clean work piece rapid packing or enter the next the working procedure.
Dual Chamber ultrasonic cleaning machine

规格\型号

UCE-2006R

UCE-2012R

UCE-2018R

UCE-2024R

UCE-2030R

超声波功率

300W

600W

900W

1200W

1500W

超声波频率

28/40KHZ

28/40KHZ

28/40KHZ

28/40KHZ

28/40KHZ

内槽尺寸

185×285×310

410×310×330

410×360×360

480×380×450

560×400×480

加热功率 3KW/380V 4KW/380V 4KW/380V 6KW/380V 6KW/380V
制冷功率 2HP 2HP 3HP 4HP 4HP

外形尺寸
(长
××高mm)

1000×450×1140

1585×620×1230

1655×670×1280

1295×1150×1355

1410×1180×1460
