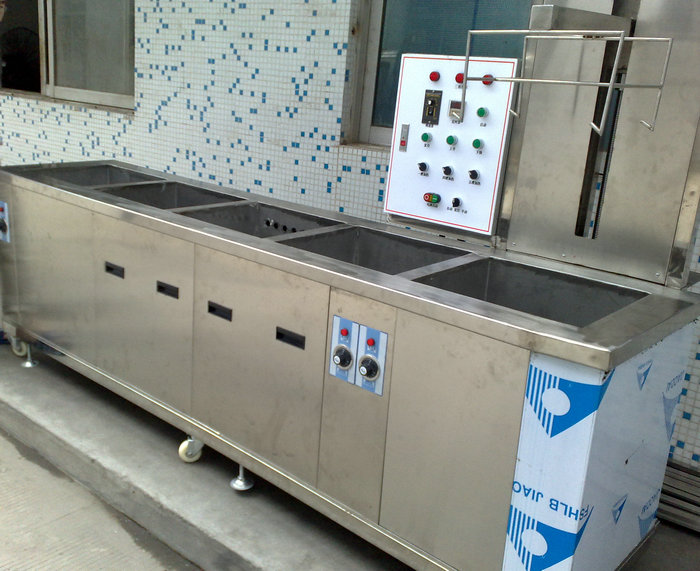

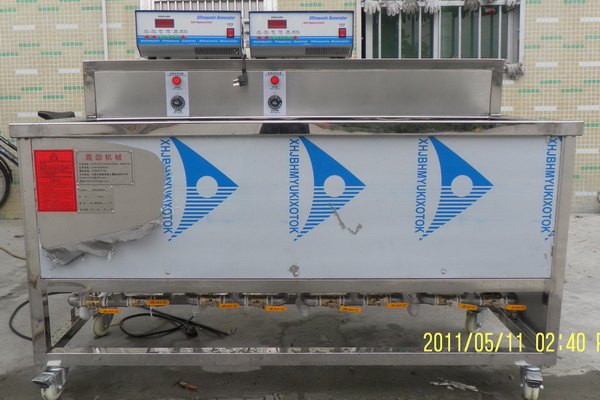

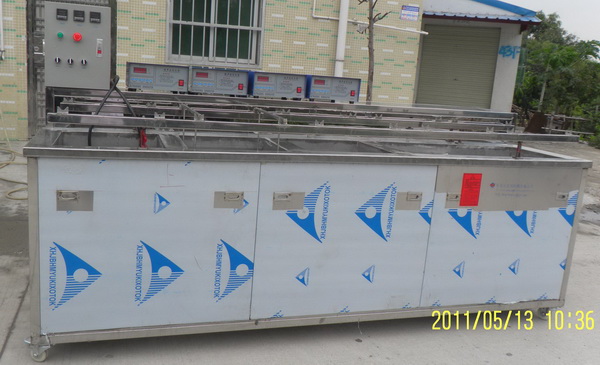

Large ultrasonic cleaning system

Large ultrasonic cleaning system
Large ultrasonic cleaning system:
City water, pure water, alkaline or weak acidic, water-based solvents as cleaning agents, and more with the spray jet, hot-dip, bubbling cleaning combinations, together with the appropriate drying method, composed of semi-automatic ultrasonic cleaningproduction line. Especially suitable for small quantities of electronic circuit boards, electronic components, watch parts, metal stamping parts, metal machine, add pieces of jewelery, spectacle frames, glassware, semiconductor silicon, such as cleaning. With unique technology, targeted, simple structure, easy to use. And low equipment cost, less investment, but also to meet the special cleaning requirements for different products.
Large ultrasonic cleaning system

Large ultrasonic cleaning system Product Features:

☆ imported stainless steel plate and components, stainless steel structure, beautiful appearance and durable.
☆ cleaning tank with heating and temperature control devices.
☆ imported high quality transducer, strong ultrasonic power output.
☆ cleaning tank and generator uses a split-body design, easy to use.
The ☆ generator using the new circuit, power adjustable.
☆ ultrasonic vibration, respectively, bottom of vibration and both side vibration, suitable for different cleaning requirements.
ultrasonic cleaning tank size according to customer requirements.
Large ultrasonic cleaning system


Type Internal size
L*W*H (mm)
Outsize mm
L*W*H (mm)
 Frequency (Khz) Power(W) Heating(W) Total power(W) voltage
UCE-1001ST 150×140×65 170×150×200 20,28,33,40,80,130 60 60 AC 220V
UCE-1002ST 240×140×100 250×240×300 20,28,33,40,80,130 100 160 260 AC 220V
UCE-1003ST 300×150×150 320×250×350 20,28,33,40,80,130 150 300 450 AC 220V
UCE-1006ST 280×210×210 320×340×450 20,28,33,40,80,130 300 1000 1300 AC 220V
UCE-1012ST 400×310×280 520×430×600 20,28,33,40,80,130 600 3000 3600 AC 220V
UCE-1018ST 490×360×320 610×480×675 20,28,33,40,80,130 900 3000 3900 AC 220V
UCE-1024ST 630×430×320 740×550×675 20,28,33,40,80,130 1200 4000 5200 AC 220V
UCE-1030ST 630×530×320 750×650×675 20,28,33,40,80,130 1500 4000 5500 AC 220V
UCE-1036ST 680×530×360 800×650×700 20,28,33,40,80,130 1800 5000 6800 AC 220V
High-power  Ultrasonic Cleaner Machine
Type Internal siz
L*W*H (mm)
Outsize mm
L*W*H (mm)
Frequency (Khz) Power(W) Heating(W) Total power(W) voltage
UCE-1040ST 680×570×400 830×710×735 20,28,33,40,80,130 2000 5000 7000 220V
UCE-1041ST 730×570×450 880×710×735 20,28,33,40,80,130 2400 6000 8400 220V
UCE-1042ST 790×670×510 940×765×785 20,28,33,40,80,130 3000 6000 9000 380V
UCE-1043ST 850×770×570 990×820×785 20,28,33,40,80,130 4000 7000 11000 380V
UCE-1044ST 910×820×620 1050×880×840 20,28,33,40,80,130 5000 7000 12000 380V
OEM Ultrasonic Cleaning Machine(Size, Frequency,Power)
