TurkeyUltrasonic Immersible Transducer Pack
Ultrasonic Immersible Transducer Pack also called the inputting type ultrasonic vibration plates, this product is suitable for cleaning electroplating parts before cleaning, horologe parts, hardware machinery parts, polyester filtering cores, semiconductor wafer, tools, lens, frames, jewellery, glass, utensils and other industries, wide application.
| Type | Diamention(mm) | Frequency (Khz) | Power(W) | Ultrasonic Transducer |
| UCE-UITP300W | 300*190*100 | 25,28,33,40,80,130 | 300 | 6 |
| UCE-UITP600W | 360*275*100 | 25,28,33,40,80,130 | 600 | 12 |
| UCE-UITP1000W | 450*350*100 | 25,28,33,40,80,130 | 1000 | 20 |
| UCE-UITP1200W | 470*380*100 | 25,28,33,40,80,130 | 1200 | 24 |
| UCE-UITP1500W | 520*450*100 | 25,28,33,40,80,130 | 1500 | 30 |
| UCE-UITP1800W | 560*450*100 | 25,28,33,40,80,130 | 1800 | 36 |
| UCE-UITP2000W | 650*450*100 | 25,28,33,40,80,130 | 2000 | 40 |
| UCE-UITP2400W | 740*520*100 | 25,28,33,40,80,130 | 2400 | 48 |
| UCE-UITP3000W | 820*540*100 | 25,28,33,40,80,130 | 3000 | 60 |
| UCE-UITP5000W | 1200*590*100 | 25,28,33,40,80,130 | 5000 | 100 |
| OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power） | ||||
Ultrasonic Immersible Transducer Pack characteristics

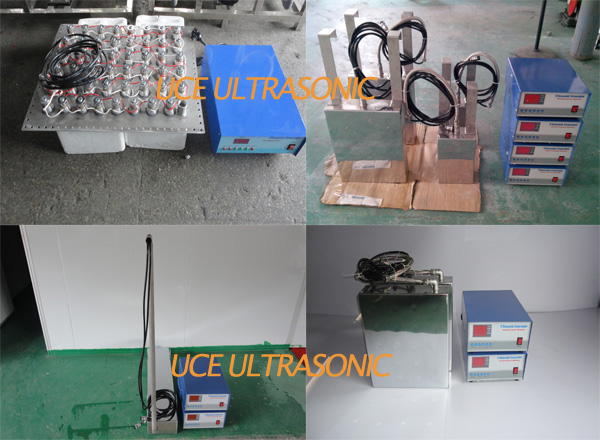

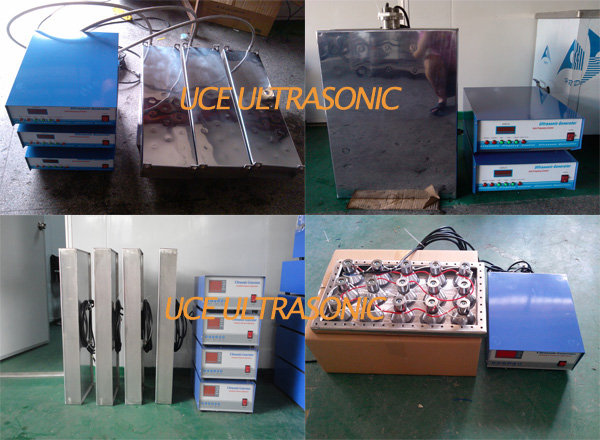

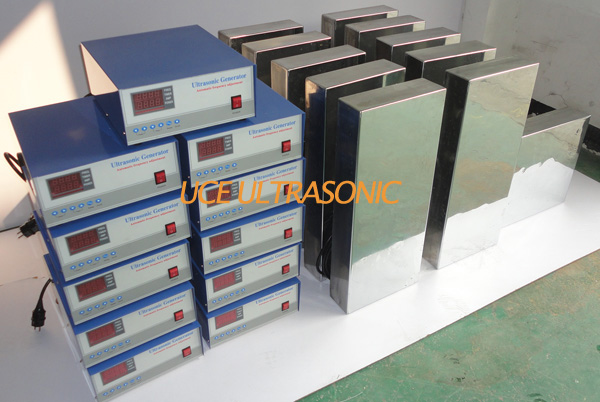

1. The inputting type Immersible Ultrasonic Transducer Pack, the seismic board and ultrasonic generator two parts composition, when the standard models of ultrasonic cleaning machine does not apply to specific working environment, besides can customize special specifications outside. Also can use the inputting type shock board device, converted into a ultrasonic cleaning machine, which can save equipment costs reached cleaning effect.
2. Shock plate are made of full stainless steel structure alkali, acid-proof, shock hard chromium plating has plate surface. Ultrasonic transducer using high-quality high-performance products, digital conversion efficiency high,
3. Adopt fission style structure, earthquake plate with ultrasonic generator between the high frequency cable to connect with socket, use and maintenance are convenient.
4. Flexible installation, according to the need of ultrasonic cleaning trough focusing on May arrange the underside, side or top surface.
5. Ultrasonic Immersible Transducer Pack can press customer special requirement Immersible Ultrasonic Transducer Pack suitable for cleaning electroplating parts before cleaning, horologe parts, hardware machinery parts, polyester filtering cores, semiconductor wafer, tools, lens, frames, jewellery, glass, utensils and other industries, wide application.
2. immersible ultrasonic transducers Mounting types Technical Information:
Type Description
A
Mounting to tank wall with threaded duct nipple and fastening bracket. Cable through the tank wall.
B
Mounting to tank wall with threaded duct nipple and fixing nipple. Cable through the tank wall.
C
Mounting to tank wall with hanging hooks. Rigid stainless steel tube for cable over the tank top.
D
Mounting to tank wall with hanging hooks. Flexible metal armoured 1 m hose for cable over the tank top.
E
Mounting to tank bottom. Rigid stainless steel tube for cable through the tank wall.
F
Mounting to tank bottom. Rigid stainless steel tube for cable over the tank top.
G
Mounting to tank bottom. Flexible metal armoured 0,5 m hose for cable through the tank wall.
H
Mounting to tank bottom. Flexible metal armoured 1,5 m hose for cable over the tank top.
X
Non-standard mounting
