RS485 network ultrasonic generator

RS485 network ultrasonic generator

With this development of modern industry, ultrasonic cleaning equipment requirements are more stringent, the need for more powerful and more flexible control of ultrasonic cleaning system. My company is the need to develop in order to meet these network ultrasonic cleaning system.

Network physical layer using RS485 communication interface, using MODBUS protocol layer protocol. In order to facilitate the realization of the network and the information needs of ultrasonic cleaning system.

Type	Power	Frequency
UCE-BT1000W	1000W	20-40KHZ	PDA Controller
UCE-BT3000W	3000W	20-40KHZ
UCE-BT4000W	4000W	20-40KHZ
UCE-BT5000W	5000W	20-40KHZ
UCE-BT6000W	6000W	20-40KHZ
UCE-BT8000W	8000W	20-40KHZ
UCE-BT9000W	9000W	20-40KHZ
UCE-BT10000W	10000W	20-40KHZ
UCE-BT12000W	12000W	20-40KHZ
UCE-BT15000W	15000W	20-40KHZ
UCE-BT20000W	20000W	20-40KHZ

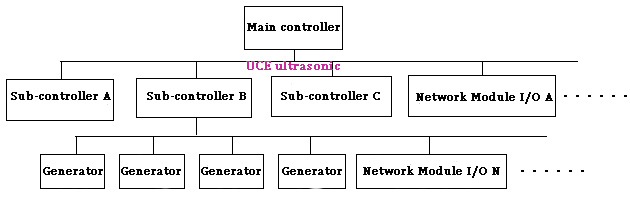

The system consists of three parts Main to:
The first part: Controller (divided into the main controller and sub-controllers) are commonly used in industry with the current PC (computer), PLC (programmable logic controller), HMI (Human Machine Interface) and the like to form.
Part II: Network I / O modules are specially developed for use with the system input and output control network terminal, it can easily network with a variety of controllers. She can control and sampling a variety of external devices, such as motors, heaters, solenoid valves, temperature sensors and other equipment.
Part III: ultrasonic power is a network terminal that is capable of performing a variety of cleaning command according to the requirements of the controller, but the controller feedback of the current state of implementation and the power supply. Realization of ultrasonic remote management and monitoring.
Features of this system are:
1, flexible networking: the rapid formation of appropriate functions and network framework according to customer demand.
2, the control rich equipment: the controller can be used on a variety of popular industrial control equipment, and even can be used to transform the original control equipment, powerful, user-friendly, nice.
3, ultrasonic power system: a single sub-master controller of the system, in theory, can control more than 200 network power, computing will have 240,000 watts of power for each power 1200W.
4, flexible control: control of the system is very flexible and can be achieved on a single power control, the power supply can also be grouped control, you can also control all the power. And can control external related auxiliary equipment.
5, control rich Parameters: Common ultrasonic power network control can only control switch parameter ultrasound, this network system can achieve network control all power parameters, including switch, the power level, frequency, time and so on. But also can monitor the status of each power supply problems can be found in time to check, it is a real network solution.
6. Remote control: RS485 control distance of 1000 meters, which means that the position controller can be installed in 1,000 meters of real power, but with monitoring feature that allows people away from some of the noise pollution brought about by the high-power ultrasonic. But also very suitable for cleaning hazardous to your health or the environment people can not enter the case. Also very suitable for centralized management needs of large factories and mines.
7, can be connected to achieve with a variety of larger networks beyond the scope of management and monitoring: for example, with an Internet connection to achieve a more remote control and maintenance.
