Type | UCE300-UBT-1 | UCE 300-UBT-2 | UCE -UBT-3 | UCE -UBT-4 |
Driving power | 100W-300W | 300W-600W | 1500W-2100W | 2100W-2700W |
Power control | 0-100%Frequency is adjustable | 0-100% Frequency is adjustable |
0-100% Frequency is adjustable |
0-100% Frequency is adjustable |
Working frequency |
28KHZ-40KHZ | 28KHZ-40KHZ | 28KHZ-40KHZ | 28KHZ-40KHZ |
Working voltage | AC220V 10% 50HZ | AC220V 10% 50HZ | AC220V 10% 50HZ | AC220V 10% 50HZ |
Ampere meter | 3A | 3A | 12A | 15A |
Max.output current |
1.5A | 2.5A | 8.5A | 11A |
Ambient temperature |
0-40℃ | 0-40℃ | 0-40℃ | 0-40℃ |
Relative humidity | 40%-90% | 40%-90% | 40%-90% | 40%-90% |
Product N.W | 2.0KG | 2.6KG | 12KG | 12KG |
size | 205×155×92 | 235×155×105 | 410×400×155 | 410×400×155 |

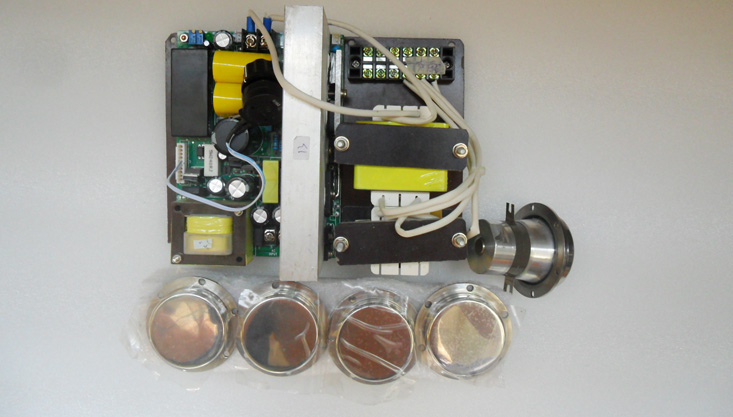

Supporting blasting fat transducer
model:UCE-MR-8001
frequency:40KHZ
power:50W,60W
Function:Separately-excited generator with sweep frequency, small-signal remote control, over temperature and over current protection, power adjustable
