220V Ultrasonic generator circuit

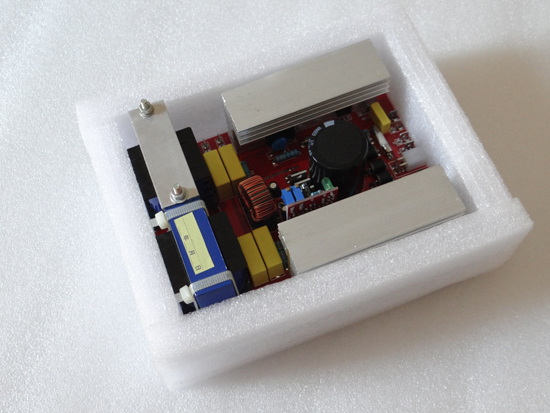

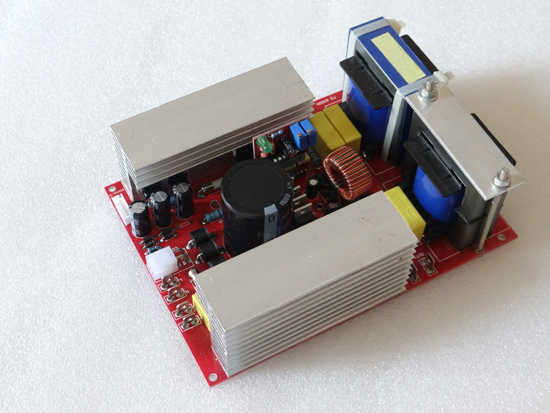

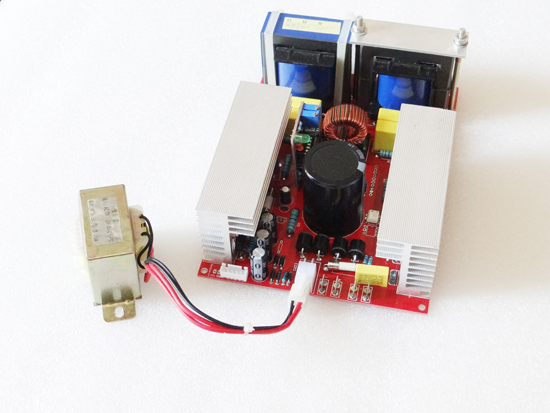

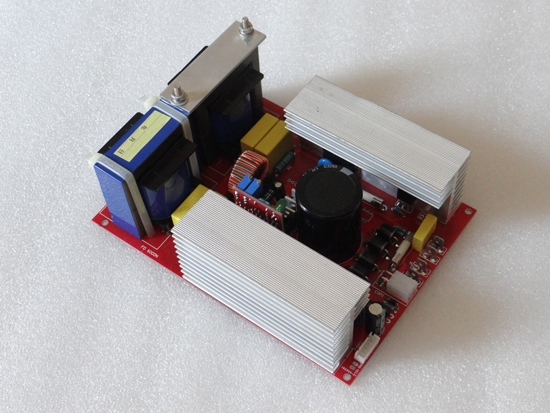

220V ultrasonic generator PCB based on ultrasonic cleaning workpiece, the 220V ultrasonic generator PCB are allowing the particles attached to the workpiece, oil and other mechanical vibration with the ultrasound off or dissolved or emulsified and so on, to achieve the purpose of cleaning the workpiece.


UCE Ultrasonic Generator 50W, 100W, 300W, 600W, 900W,1000W,1200W, 1500W, 1800W, 2000W, 2400W

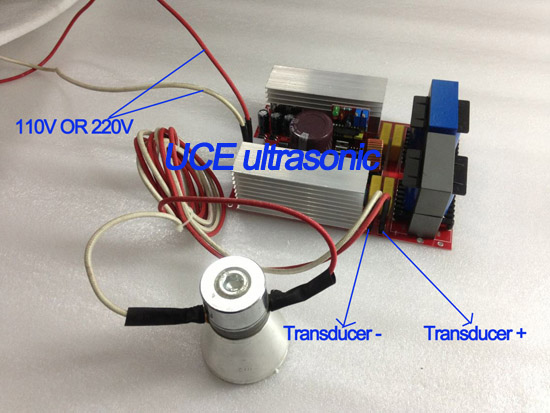

AC 110V-240V, 50/60HZ CE and FCC Certified.

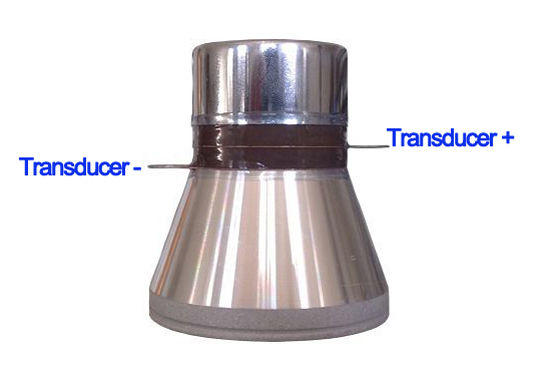

Ultrasonic Cleaning Equipment Ultrasonic parts of divided into two parts; one ultrasonic transducer, said ultrasonic vibration (or head); the other is the ultrasonic generator, ultrasonic transducer is the ultrasonic generator is converted to electrical signals provided by the mechanical vibration.

Ultrasonic generator (hereinafter referred to as generator) is actually a power signal generator, it produces a certain frequency sinusoidal (or similar sinusoidal) signals, ultrasonic generator development and is closely related to the development of power electronic devices in general can be divided into tubes, analog transistor. Switching transistor at these stages, the following are described separately.
