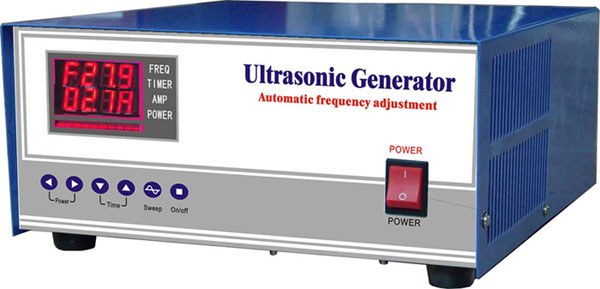

Digital ultrasonic generator

Digital ultrasonic generator
UCE Ultrasonic Generator 50W, 100W, 300W, 600W, 900W,1000W,1200W, 1500W, 1800W, 2000W, 2400W
AC 110V-240V, 50/60HZ CE and FCC Certified，Hundred percent by EMC and EMI test。

Digital ultrasonic generator
My company in 2012 launched a new generation of ultrasonic generator
1) a new generation of computer chip, dual display frequency current, more powerful
2) using a pulse width control, more accurate and more stable output power adjustment.
3) The automatic adjustment and automatic frequency tracking, so that the tone machine more stable easier
4) enhanced circuit protection functions: over-temperature protection and over current protection, so that more reliable
5) the new circuit structure optimization design, the whole rational layout and maintenance more convenient and less costly.

Standard configuration features:
1. Timer
2. Frequency display
3. Current Display
3. Power conditioning
4. External wire
5 Output with Air plug
6. Frequency machine uses high-frequency head

Digital ultrasonic generator selectable frequency 25KHZ, 28KHZ,33khz, 40KHZ, 68KHZ, 80KHZ, 130KHZ or higher frequency, single-frequency ultrasonic generator.

Digital ultrasonic generator Power: 600W ~ 2400W, 2500W ~ 10000W (to be ordered) or a higher power.

Type	Power（W）	Frequency (KHz)	Transducer numbers	Size
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE All of machine are available for opening remote control function to connect with your own PLC system
UCE-NT300	300W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	3-6	300x360x150
UCE-NT600	600W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	6-12	300x360x150
UCE-NT900	900W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	9-18	300x360x150
UCE-NT1000	1000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	10-20	300x360x150
UCE-NT1200	1200W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	12-24	300x360x150
UCE-NT1500	1500W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	15-30	300x360x150
UCE-NT1800	1800W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	18-36	300x360x150
UCE-NT2000	2000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	20-40	300x360x150
UCE-NT2400	2400W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	24-48	300x360x150
UCE-NT3000	3000W	20khz,25khz,28khz,33khz,40khz Frequency is adjustable	50-60	300x360x150
High Frequency	300W-1200W	65-80khz
High Frequency	300W-1200W	120-135khz
