Ultrasonic Welding power generator

Ultrasonic Welding power generator Ultrasonic Welding power generator

Type Power(W) Frequency (KHz)
UCE-WTI-500W15 500W 15KHz
UCE-WTI-500W20 500W 20KHz
UCE- WTI-600W15 600W 15KHz
UCE- WTI-600W20 600W 20KHz
UCE- WTI-900W15 900W 15KHz
UCE- WTI-900W20 900W 20KHz
UCE- WTI-1500W15 1500W 15KHz
UCE- WTI-1500W20 1500W 20KHz
UCE- WTI-1800W15 1800W 15KHz
UCE- WTI-1800W20 1800W 20KHz
UCE- WTI-2000W15 2000W 15KHz
UCE- WTI-2000W20 2000W 20KHz
UCE- WTI-2500W15 2500W 15KHz
UCE- WTI-2500W20 2500W 20KHz

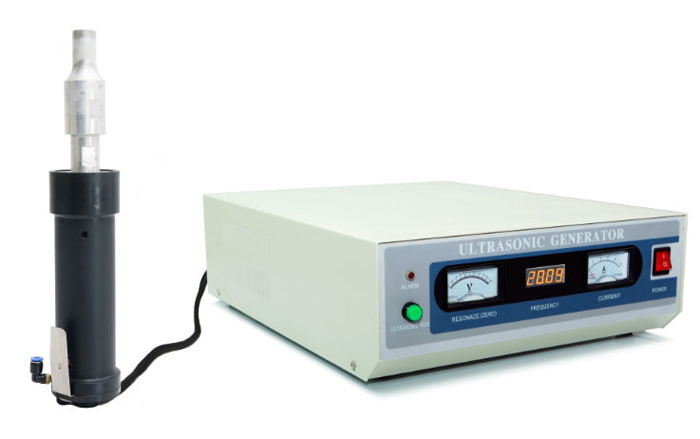

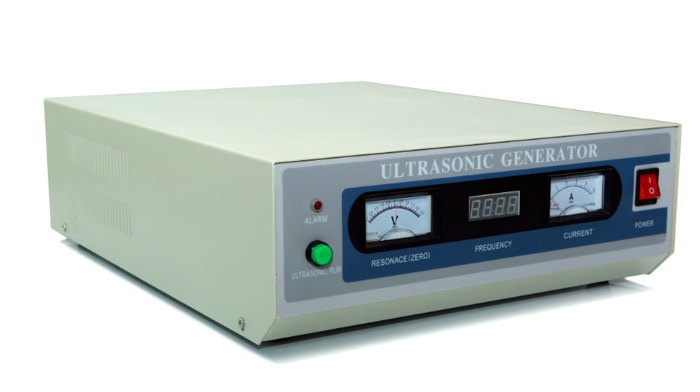

UCE ultrasonic welding generator
Ultrasonic Welding power generator
Ultrasonic Welding power generator
Ultrasonic Welding power generator
Ultrasonic Welding power generator
The principle of ultrasonic welding by the ultrasonic generator 50/60 Hz current is converted into 15,20,30 or 40 kHz energy. The high frequency electrical energy is converted by the transducer is again converted into a mechanical movement of the same frequency, followed by the mechanical motion transmitted to the weld head through a set can change the amplitude modulator means. The welding head will be received by the vibration energy transmitted to the engaging portion of the workpiece to be welded, in the region, the vibration energy is by friction by conversion into heat, the plastic melts. Ultrasonic can not only be used to weld the hard thermoplastic fabrics and films can also be processed.

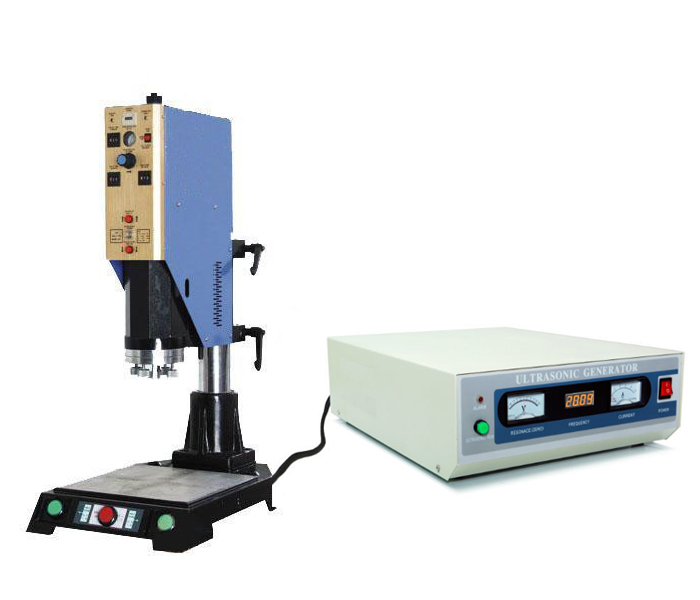

Main application: plastic welding machines and metal welding machine two. Ultrasonic Welding power generator
