Piezo Ceramic (PZT) for Ultrasonic Fish Finder
|
spec
|
dimension
(mm) |
Thickness Frequency
ft (KHz) |
Radial Frequency
fs(KHz) |
Capaciatance
C (pf) |
Impedance
Zt (Ω) |
K33(%)
|
Kp(%)
|
|
UCE-1930
|
Ø19×3.0
|
|
215±2%
|
877±12.5%
|
|
|
≥50
|
|
UCE-2585
|
Ø25×8.5
|
235±2%
|
|
650±12.5%
|
≤45
|
≥58
|
|
|
UCE-2510
|
Ø25×10
|
200±2%
|
|
550±12.5%
|
≤45
|
≥58
|
|
|
UCE-27489
|
Ø27.4×8.9
|
215±2%
|
|
1230±12.5%
|
≤45
|
≥59
|
|
|
UCE-27410
|
Ø27.4×10
|
200±2%
|
|
665±12.5%
|
≤45
|
≥58
|
|
|
UCE-43510
|
Ø43.5×10
|
200±2%
|
50±1
|
1430±12.5%
|
≤25
|
≥53
|
≥50
|
|
UCE-4596
|
Ø45×9.6
|
200±2%
|
50±1
|
3076±12.5%
|
≤45
|
≥59
|
≥60
|
|
UCE-4510
|
Ø45×10
|
200±2%
|
50±1
|
1790±12.5%
|
≤25
|
≥58
|
≥54
|
|
UCE-605
|
Ø60×5
|
420±2%
|
|
5250±12.5%
|
≤15
|
≥53
|
|
|
UCE-54910
|
Ø54×Ø9×10
|
207±2%
|
|
2070±12.5%
|
≤45
|
≥53
|
|

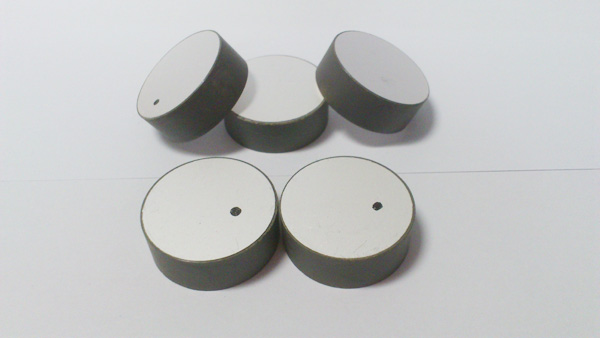

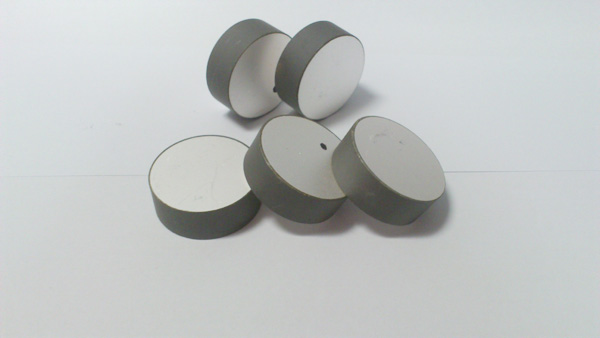

Piezoelectric Ceramic (PZT) for Ultrasonic Fish Finder
