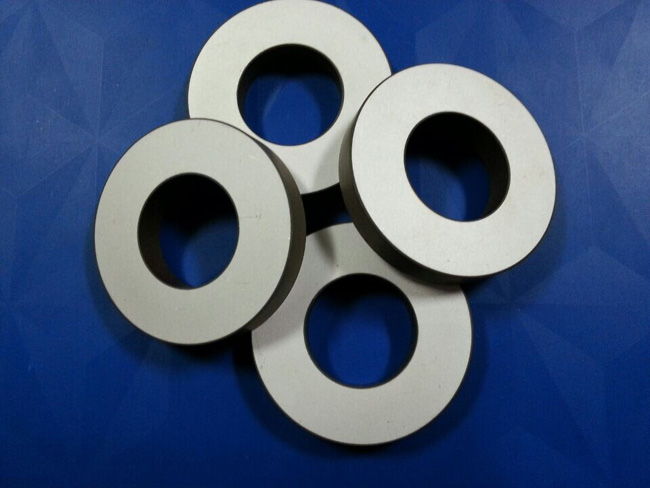

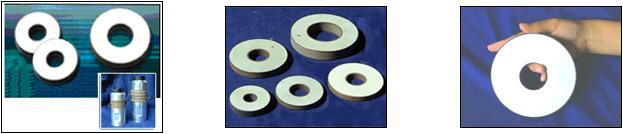

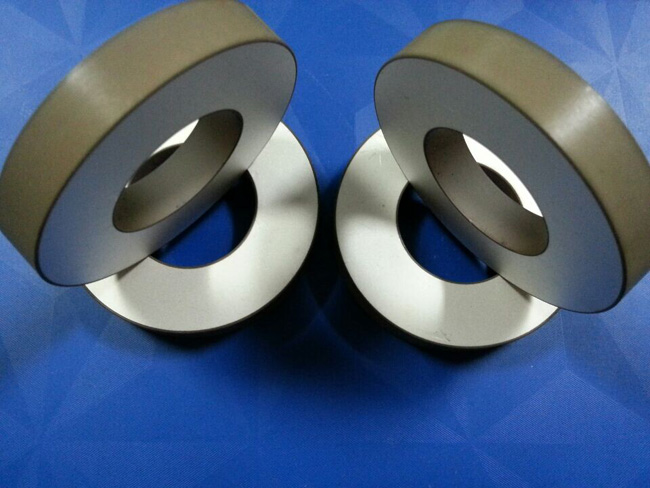

Piezo Ceramic (PZT) chip for Ultrasonic Welding Machine

spec	Dimension (mm)	Radial frequency (KHz)	Capacitance (pf)	Dielectric dissipation factor tanδ(%)	Electromechanical coupling coefficient (Kr)	Impedance Zr(Ω)	Thickness frequency (KHz)	Mechanical quality factor (Qm)
UCE-25103	Φ25×Φ10×3	66.4	1240±12.5%	≤0.3	≥0.46	≤15	683±5%	800
UCE-225104	Φ25×Φ10×4	66.4	930±12.5%	≤0.3	≥0.46	≤15	512±5%	800
UCE-40155	Φ40×Φ12×5	45.9	2070±12.5%	≤0.3	≥0.46	≤15	410±5%	800
UCE-40155	Φ40×Φ15×5	42.2	1960±12.5%	≤0.3	≥0.46	≤15	323±5%	500
UCE-40176	Φ40×Φ17×6	40.5	1555±12.5%	≤0.3	≥0.46	≤15	341±5%	800
UCE-40205	Φ40×Φ20×5	37.9	1700±12.5%	≤0.3	≥0.47	≤15	410±5%	800
UCE-50206	Φ50×Φ20×6	33.2	2490±12.5%	≤0.3	≥0.46	≤15	341±5%	500
UCE-501765	Φ50×Φ17×6.5	34.8	2430±12.5%	≤0.3	≥0.46	≤15	315±5%	800
UCE-50236	Φ50×Φ23×6	31.2	2340±12.5%	≤0.3	≥0.47	≤15	341±5%	800
UCE-50276	Φ50×Φ27×6	29.3	2100±12.5%	≤0.3	≥0.47	≤15	341±5%	800
UCE-603010	Φ60×Φ30×10	25.3	1922±12.5%	≤0.3	≥0.47	≤18	205±5%	800
