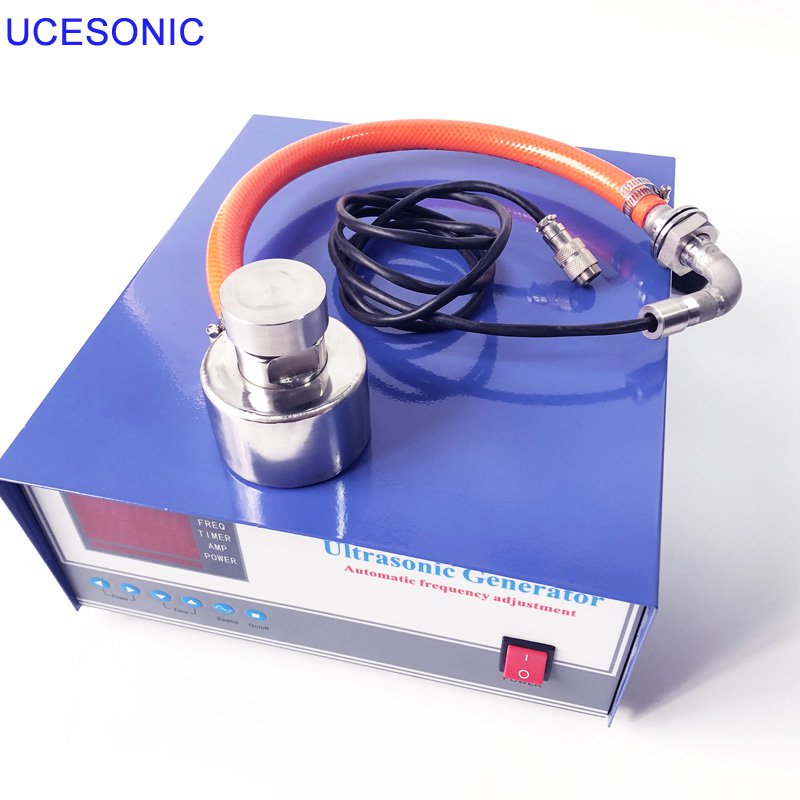

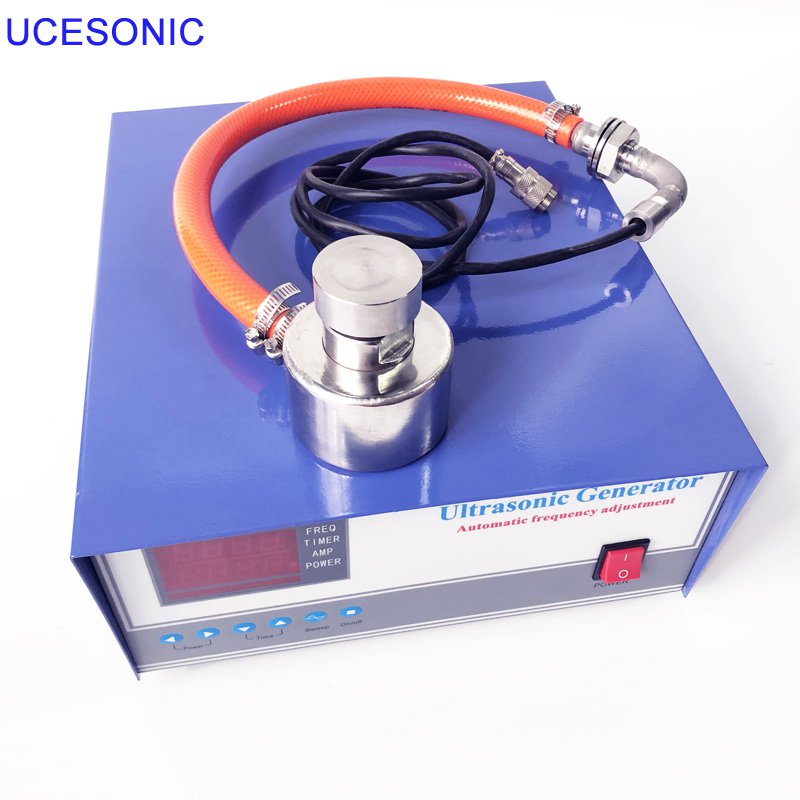

ultrasonic vibrating screen generator

The ultrasonic vibrating screen machine consists of an ultrasonic resonant power supply, an oscillator, an external mesh ring and a resonant ring. The high-frequency electric oscillation generated by the ultrasonic resonant power supply is converted from the oscillator to the high-frequency sinusoidal longitudinal oscillation wave. These oscillation waves are transmitted to the resonant ring through the base of the transducer to make the resonant ring resonate, and then the vibration is evenly transmitted to the screen surface by the resonant ring. When the material on screen is subjected to low-frequency three-component vibration and superimposed with ultrasonic vibration, it can not only prevent mesh blockage, but also improve the screening output and quality.

Superiority of Ultrasound Vibrating Screen Machine

1. The screen of the ultrasonic vibrating screen machine has the function of thorough anti-blockage and self-cleaning, and can be screened to 600 meshes without blockage of the mesh.

2. In the sense of ultrasonic vibrating screen machine, the screening phenomenon caused by the difficult problems of static electricity/easy agglomeration is solved, and mesh screening can be achieved completely.

3. The screening accuracy of the ultrasonic vibrating screen machine can be improved by 1-70% in a large span, the output can be increased to 1-10 times, and the performance can be improved.

4. The ultrasonic generator of the ultrasonic vibrating screen machine can choose the working mode of intermittent or continuous working

Type	Power	Frequency
UCE-ZDDY100W	100W	33KHZ
UCE-ZDDY200W	200W	33KHZ
UCE-ZDDY300W	300W	33KHZ
