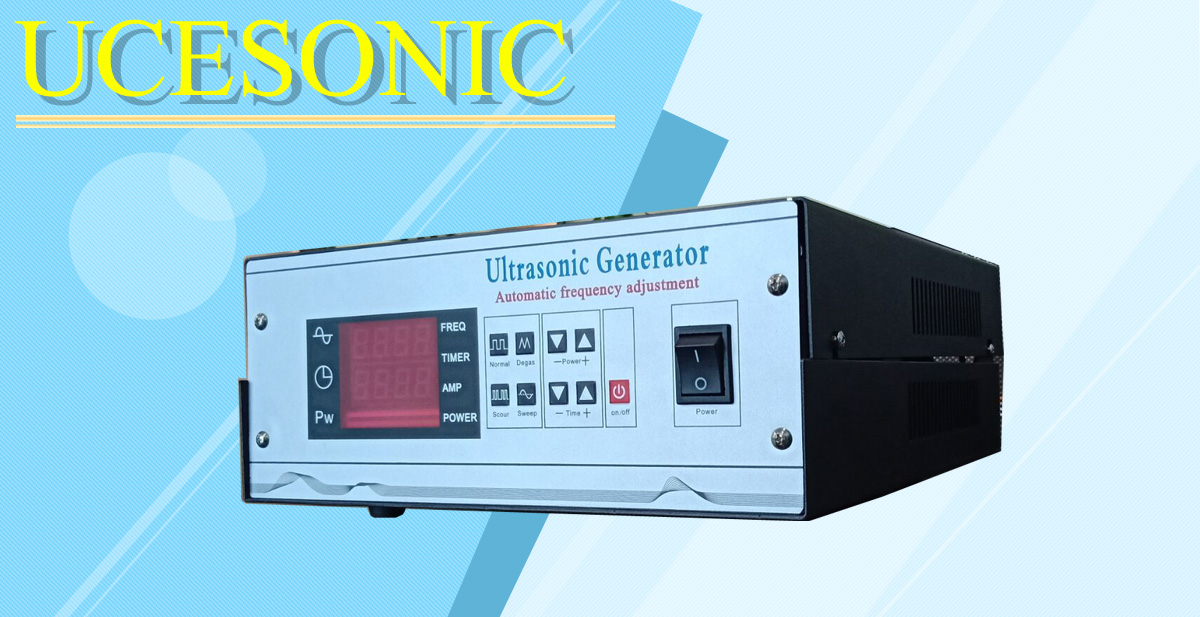

Multi-function ultrasonic generator

Characteristic; 1, aluminum alloy oxidation case shell, light and high-grade. 2. With remote connect...

WeChat

Characteristic;
1, aluminum alloy oxidation case shell, light and high-grade.
2. With remote connection port, it can be controlled by multiple simultaneous computers or used by a single computer. It can work by connecting start-up, emergency stop switch and 24V solenoid valve, and start-up automatic detection is more safe and accurate.
3. The internal circuit adopts full-automatic linear numerical control phase-locked loop circuit, automatic tracking of ambient temperature and frequency, a variety of over-frequency and overload protection circuits, power amplifier adopts full-bridge IGBT module, high power and high conversion efficiency.
8. Automatic frequency range: +-3 khz, multiple ultrasonic cleaning mode selection: normal mode, sweep mode, degassing mode, scouring mode

Type

Power(W)

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-MT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-MT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-MT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-MT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-MT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-MT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-MT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-MT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
