We can produce from 15KHz-60KHz ultrasonic transducer, the power can be from 30w-4200w.
Ultrasonic welding machine features and advantages
•It is suitable for welding the thermal plastic such like: HDPE、PP、PE、ABS、PVC、PC、EVA、PMMA、PS、PP、PBT、PETG, and other plastic, also for fiber cotton, chemical fiber, metal hardware in the aspects of riveting, cutting, sealing, welding, spot welding, embossing, fixed position for files, melt welding
•According to customer needs to replace riveting, welding, embedded, removing process, relative to other traditional process (such as adhesives, hot welding or screw connection), has high production efficiency, good weld quality, environmental protection and energy saving advantages
• Portable operation, fast, clean, safe and stable
Type | Full-length(mm) | Joint Bolt(mm) |
Frequency(KHz) |
Resonance Impedance(Ω) |
Capacity(pF) |
Input Power (W) |
UCE-UWT152500 P8 |
153 |
M20×1.5 |
15 |
15 |
13000 |
2500 |
UCE-UWT152000 P8 |
167 |
M20×1.5 |
15 |
10 |
9500 |
2000 |
UCE-UWT151500 P4 |
171 |
M18×1.5 |
15 |
12 |
12500 |
1500 |
UCE-UWT151800 P4 |
118 |
M20×1.5 |
20 |
15 |
15000 |
1800 |
UCE-UWT202000 P8 |
128 |
M18×1 |
20 |
10 |
11000 |
2000 |
UCE-UWT202000 P8 |
124 |
M18×1.5 |
20 |
12 |
10000 |
1500 |
UCE-UWT20700 P8 |
112 |
1/2-20 UNF |
20 |
15 |
9000 |
700 |
UCE-UWT20900 P8 |
133 |
1/2-20 UNF |
20 |
15 |
10000 |
900 |
UCE-UWT20600 P8 |
121 |
M18×1.5 |
20 |
15 |
6000 |
600 |
UCE-UWT30500 P8 |
77 |
M10×1.5 |
30 |
5 |
5500 |
500 |
UCE-UWT28200 P4 |
92.1 |
M10×1 |
28 |
20 |
3000 |
200 |
UCE-UWT28100 P8 |
91 |
M8×1 |
28 |
25 |
2200 |
100 |
UCE-UWT28250 P8 |
94 |
1/2-20 UNF |
28 |
20 |
4000 |
250 |
UCE-UWT202000 P8 |
128 |
1/2-20 UNF |
20 |
10 |
20000 |
2000 |
UCE-UWT201500 P8 |
124 |
1/2-20 UNF |
20 |
10 |
16000 |
1500 |
UCE-UWT201300 P8 |
128 |
1/2-20 UNF |
20 |
10 |
12500 |
1300 |
UCE-UWT201500 P8 |
132 |
1/2-20 UNF |
20 |
10 |
11000 |
1500 |
UCE-UWT20900 P8 |
123 |
1/2-20 UNF |
20 |
10 |
9500 |
900 |
UCE-UWT152000 P4 |
171 |
M18×1.5 |
15 |
12 |
10000 |
2000 |
UCE-UWT35100 P8 |
71 |
M8×1 |
35 |
25 |
2200 |
100 |
UCE-UWT38100 P8 |
66 |
M8×1.25 |
38 |
40 |
1200 |
100 |
UCE-UWT38200 P4 |
65 |
M8×1 |
38 |
14 |
3300 |
200 |

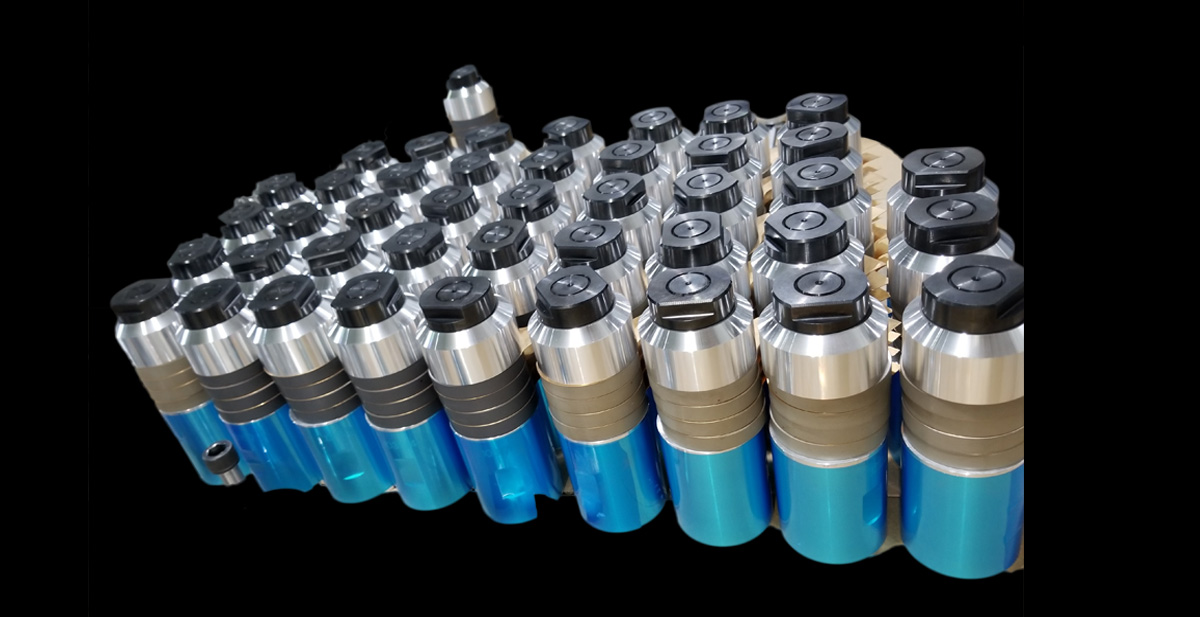

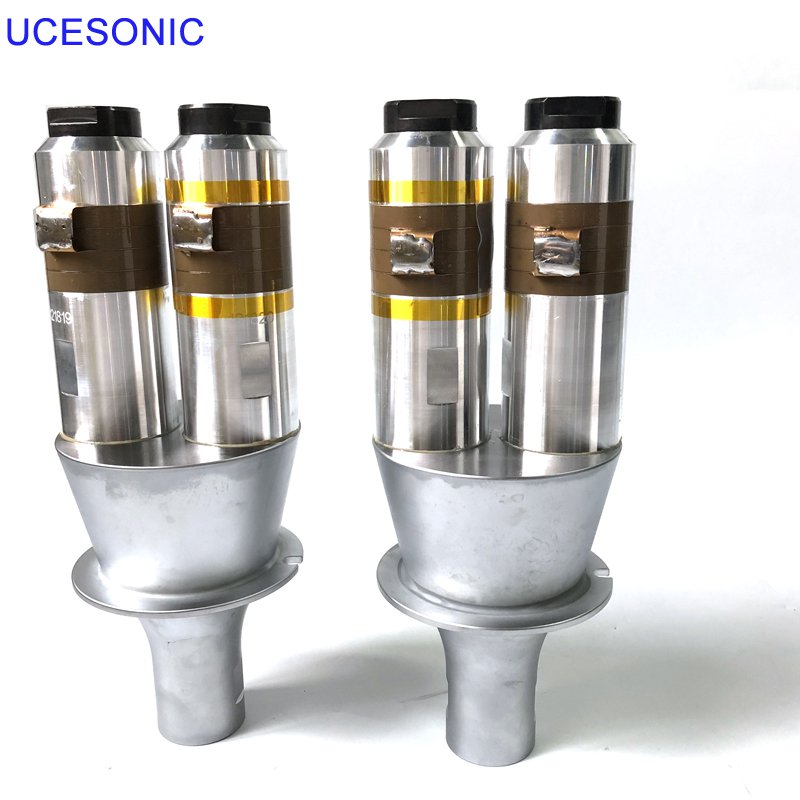

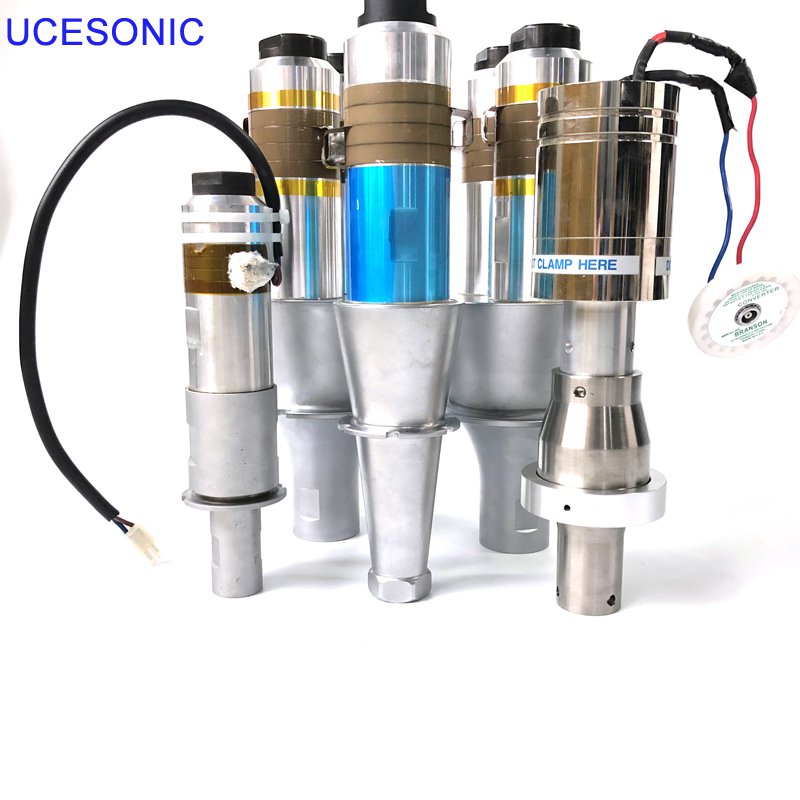

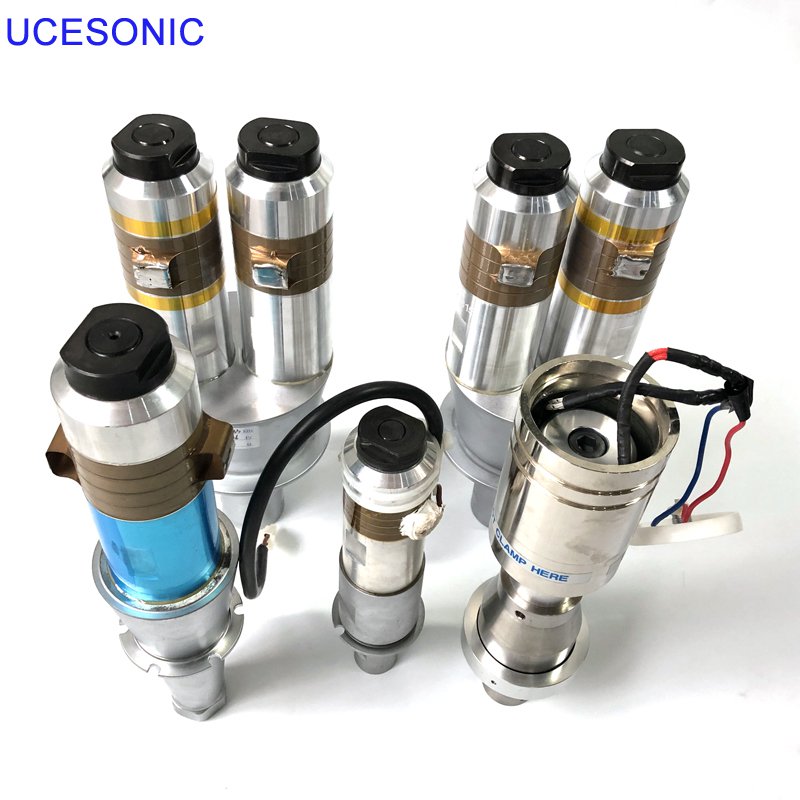

Ultrasonic welding transducer 15khz/20khz
