Industrial Multi Tank Ultrasonic Cleaner Bath for Rnsing Drying Heated Car Motor

Cleaning process:

Remove the wax on the watch belt, and use environmental protection wax remover.

technological process:

One bath heating and soaking → two baths ultrasonic rough washing → three baths ultrasonic fine washing → four baths heating and rinsing → five baths heating and rinsing

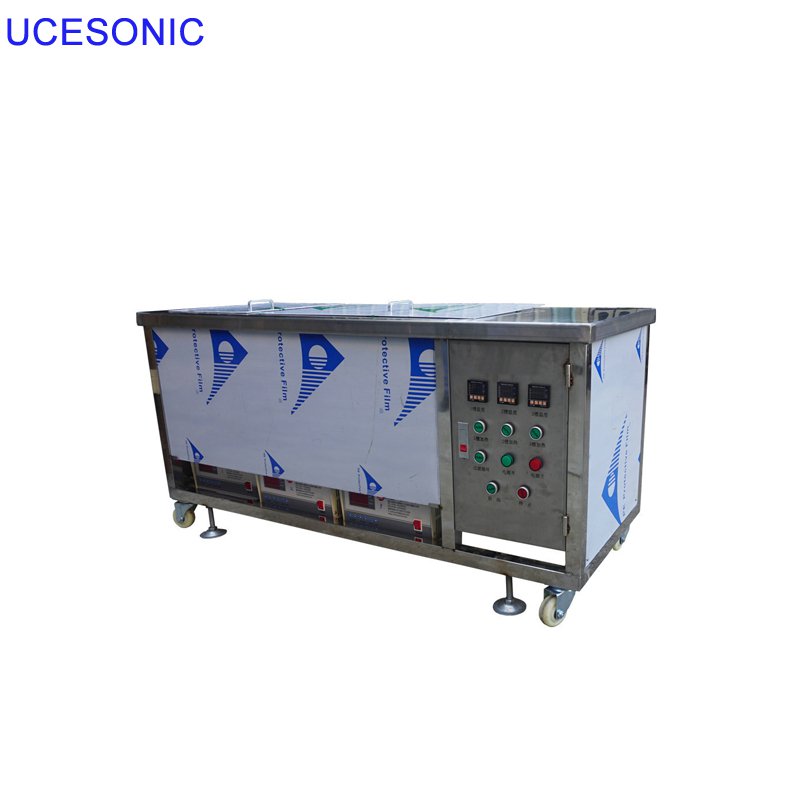

Cleaning machine structure

The system is mainly composed of heating tank, ultrasonic cleaning tank, ultrasonic generator, control frame and generator electric box.

Functions and requirements of each tank

It is designed as an integrated tank. The external dimension of the equipment is about 3110 * 600 * 780mm. The bottom of the device is

It is welded by thickened 50 * 50 stainless steel square tube, and 6 3-inch solid casters are installed at the bottom. The heating and temperature control part is directly installed in the water tank

The outer wall is convenient for operation. The size of the control rack is about 1400mm (H) × 450 * 450 wide, and four ultrasonic generators are placed. The generator of the control frame is connected with the slot body by 2m. Total power: 18kw, voltage: 380V.
