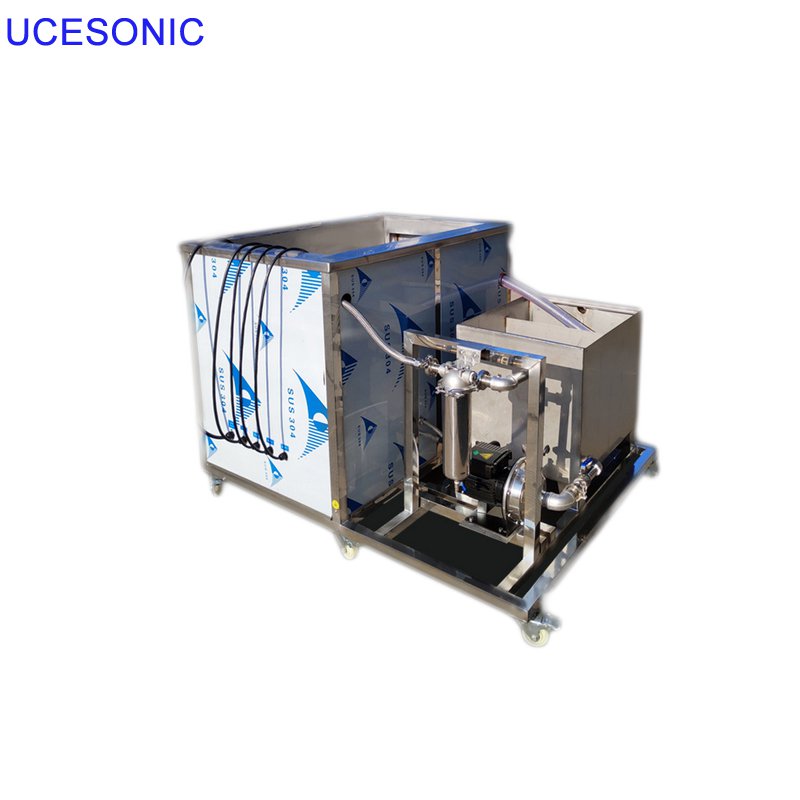

Circulating filter ultrasonic cleaner





1、 Features of circulating filter ultrasonic cleaner:



1. Adopt pure manual argon welding, durable and high temperature resistant, international 304 stainless steel thickened to 2mm;



2. Machine with memory function, with memory function, no need to reset after time setting;



3. 20-95 degree temperature adjustable, heating automatic constant temperature system, fast heating speed;



4. South Korea imported standard 50W industrial shock head, concentrated strength, good cleaning effect;



5. Industrial standard power line is thickened to ensure safety, heat resistance and softening resistance;



6. Industrial design standard, industrial load up to 300kg, strong and durable;



7. The separate generator can adjust the ultrasonic power according to the cleaning degree of different objects;



Complete machine configuration: with generator control box, caster, muffler cover, power cord, stainless steel cleaning basket, drain valve.

Type	Internal size L*W*H (mm)	Outsize mm L*W*H (mm)	Frequency (Khz)	Power (W)	Heating (W)	Total power(W)	voltage
UCE-XHXJ-1006	280×210×210	320×250×350	20,28,33,40,80,130	300	100	400	220V
UCE-XHXJ-1012	400×310×280	520×430×600	20,28,33,40,80,130	600	500	1100	220V
UCE-XHXJ-1018	490×360×320	610×480×675	20,28,33,40,80,130	900	500	1400	220V
UCE-XHXJ-1024	630×430×320	740×550×675	20,28,33,40,80,130	1200	1000	2200	220V
UCE-XHXJ-1030	630×530×320	750×650×675	20,28,33,40,80,130	1500	100	2500	220V
UCE-XHXJ-1036	680×530×360	800×650×700	20,28,33,40,80,130	1800	1000	2800	220V
UCE-XHXJ-1040	680×570×400	830×710×735	20,28,33,40,80,130	2000	1000	3000	220V
UCE-XHXJ-1041	730×570×450	880×710×735	20,28,33,40,80,130	2400	2000	4400	220V
ARS-XHXJ-1042	790×670×510	940×765×785	20,28,33,40,80,130	3000	2000	5000	380V
ARS-XHXJ-1043	850×770×570	990×820×785	20,28,33,40,80,130	4000	2000	6000	380V
UCE-XHXJ-1044	910×820×620	1050×880×840	20,28,33,40,80,130	5000	3000	8000	380V
UCE-XHXJ-1045	960×870×680	1100×940×920	20,28,33,40,80,130	8000	4000	12000	380V
UCE-XHXJ-1046	1100×930×730	1160×1000×980	20,28,33,40,80,130	10000	5000	15000	380V
