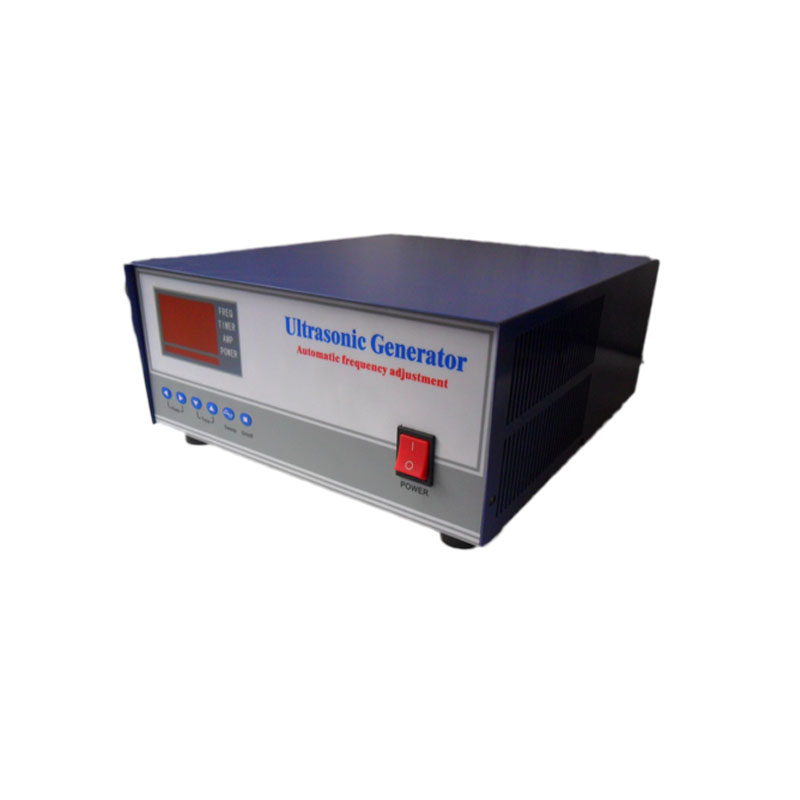

150khz ultrasonic cleaning generator for Frequency cleaning

ultrasonic generator output rate can be adjusted: smoothly linearly adjustable output power, from 20% to 100% adjustable sweeping frequency: can set different sweeping frequency, sweeping frequency width of 20% - 100% alarm: overcurrent, overheating alarm, output under-power alarm, output open-circuit alarm, output frequency drift alarm, remote control when communication over-time alarm When: the ultrasonic generator can be set to work regularly, the time range (1S ~ 9999S) temperature control (optional): acquisition of the ultrasonic tank temperature, through the relay control heater, maintain the tank temperature in the set temperature (+2) within the range of energy control: control the ultrasonic transducer constant power output; work can display frequency, power and Corresponding state; Hetero-excitation circuit board structure; Ultrasonic output power continuously stepless adjustable, range 10-100%; 10-bit LED display step by step, can directly grasp the size of ultrasonic output power.



1. Sweep function: Advanced sweep circuit in the international market to protect the shock plate effectively.

2. All IGBT power output components are imported devices, which have the advantages of small size, large power and fast response.

3. Power pipe: adopt imported 50A/1200V pipe to eliminate the possibility of burning.

4, the unique sealing anti-corrosion technology to ensure long-term stable and reliable operation of internal circuit boards;

5. Its excitation control circuit, output power up to 98%, so that the ultrasonic cavitation density has been greatly improved.

6, the output current is sine wave, which can extend the life of transducer and generator itself.

7, wide range sweep frequency: 15KHz - 80KHz adjustable, suitable for all kinds of transducers.

8. Constant output design, output current ripple is small, output is more stable, protection transducer is not damaged.

9. Output overcurrent and short circuit protection can protect generator power tube.
