Digital Reliable PCB Driver Circuit Ultrasonic Generator For Ultrasonic Cleaner

2020-02-04 18:37 admin

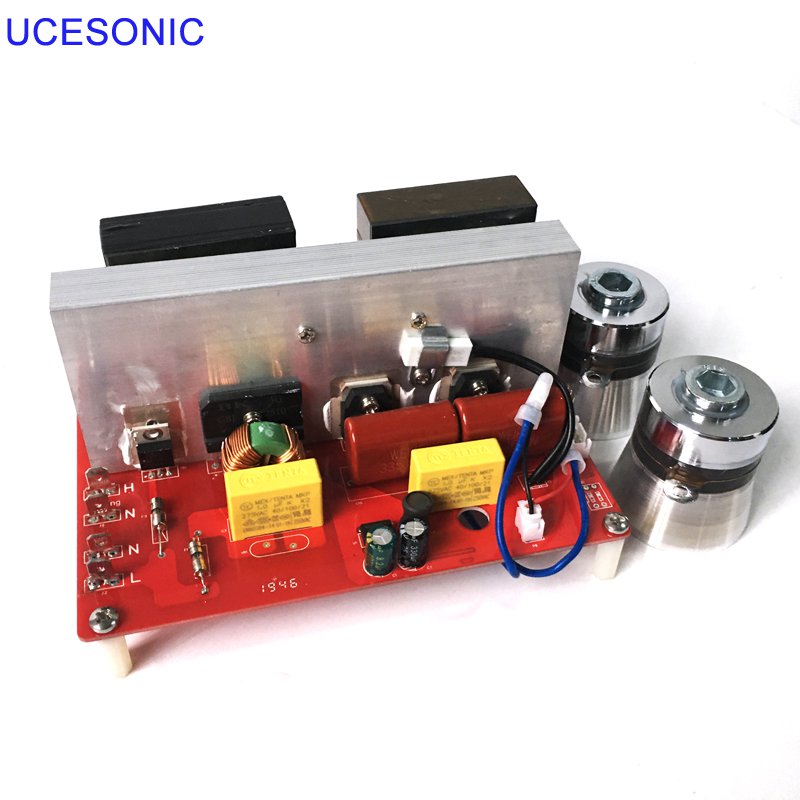

Digital Reliable PCB Driver Circuit Ultrasonic Generator For Ultrasonic Cleaner
Medium of small power ultrasonic generator: the control box adopts other excitation circuit under the control of microcomputer, frequency automatic tracking and frequency scanning mode
And other advanced technologies. Compared with the traditional control box, it has the advantages of stable and reliable operation, continuously adjustable ultrasonic power, and can maximize the potential of the transducer. work
Automatic frequency tracking makes output match better, power stronger and efficiency higher. The unique frequency sweep mode makes the cleaning solution under the function of frequency sweep
Form a small backflow, timely take the dirt peeled off by ultrasound away from the workpiece surface, so as to achieve a faster and more thorough cleaning effect, ultrasonic cleaning
Washing efficiency is higher. At the same time, it has perfect protection functions: over temperature protection and over-current protection, making the work more reliable.
Small power ultrasonic generator with digital power adjustment can adapt to different cleaning requirements.
Type Power(W) Frequency (KHz)
UCE-220V-PCB200W 200 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
50khz,54khz,60khz,68khz,80khz,90khz
100khz,120khz,135khz,165khz,200khz
UCE-220V-PCB300W 300 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50khz,54khz,60khz,68khz,80khz,90khz
100khz,120khz,135khz
UCE-220V-PCB400W 400 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
UCE-220V-PCB500W 500 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
UCE-220V-PCB600W 600 20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
Digital Reliable PCB Driver Circuit Ultrasonic Generator For Ultrasonic Cleaner
Digital Reliable PCB Driver Circuit Ultrasonic Generator For Ultrasonic Cleaner

Digital Reliable PCB Driver Circuit Ultrasonic Generator For Ultrasonic Cleaner
