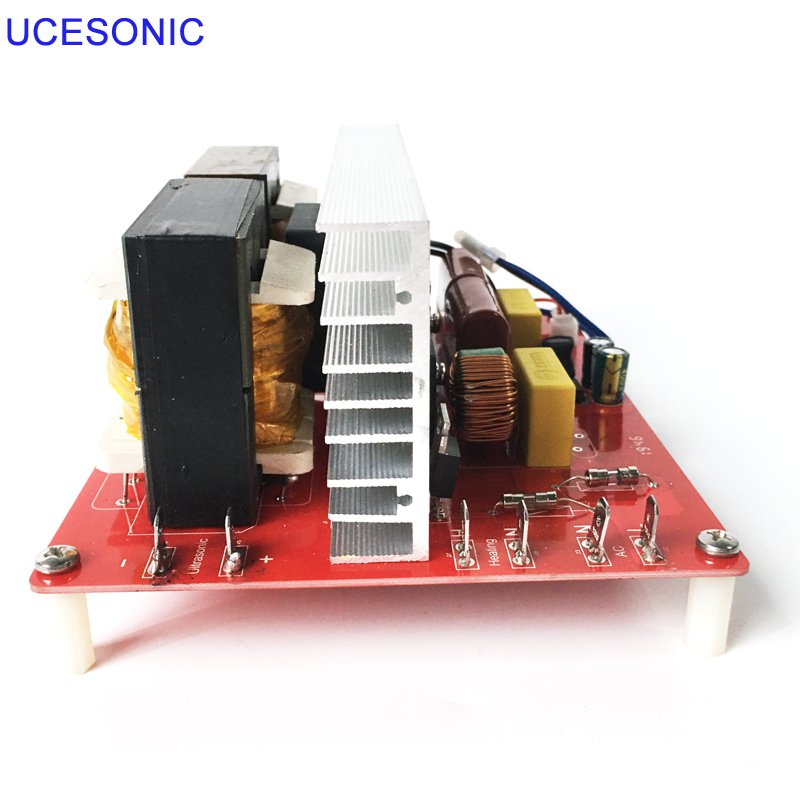

ultrasonic cleaning transducer driver PCB for ultrasonic washing

ultrasonic cleaning transducer driver PCB for ultrasonic washing

1. Sweep function: Advanced sweep circuit in the international market, effectively protecting the shock board;

2. The power output components IGBT are all imported devices, which have the advantages of small size, high power and fast response;

3. Power tube: imported 50A / 1200V inlet tube is used to eliminate the possibility of tube burning;

4. The unique sealing and anti-corrosion technology ensures the long-term stable and reliable operation of the internal circuit board;

5. The output power of the new control circuit is more than 98%, which greatly improves the cavitation density;

6. The output current is sine wave, which can prolong the service life of transducer and generator;

7、 Wide range sweep frequency: adjustable from 15KHz to 80KHz, suitable for various transducers;

8. Constant output design, small output current ripple, more stable output, protect the transducer from damage;

9. Output over-current and short-circuit protection can protect generator power tube.

Type	Power（W）	Frequency (KHz)
UCE-220V-PCB200W	200	20khz,25khz,28khz,33khz,40khz Frequency is adjustable 50khz,54khz,60khz,68khz,80khz,90khz 100khz,120khz,135khz,165khz,200khz
UCE-220V-PCB300W	300	20khz,25khz,28khz,33khz,40khz Frequency is adjustable 50khz,54khz,60khz,68khz,80khz,90khz 100khz,120khz,135khz
UCE-220V-PCB400W	400	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-220V-PCB500W	500	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-220V-PCB600W	600	20khz,25khz,28khz,33khz,40khz Frequency is adjustable

ultrasonic cleaning transducer driver PCB for ultrasonic washing

ultrasonic cleaning transducer driver PCB for ultrasonic washing
